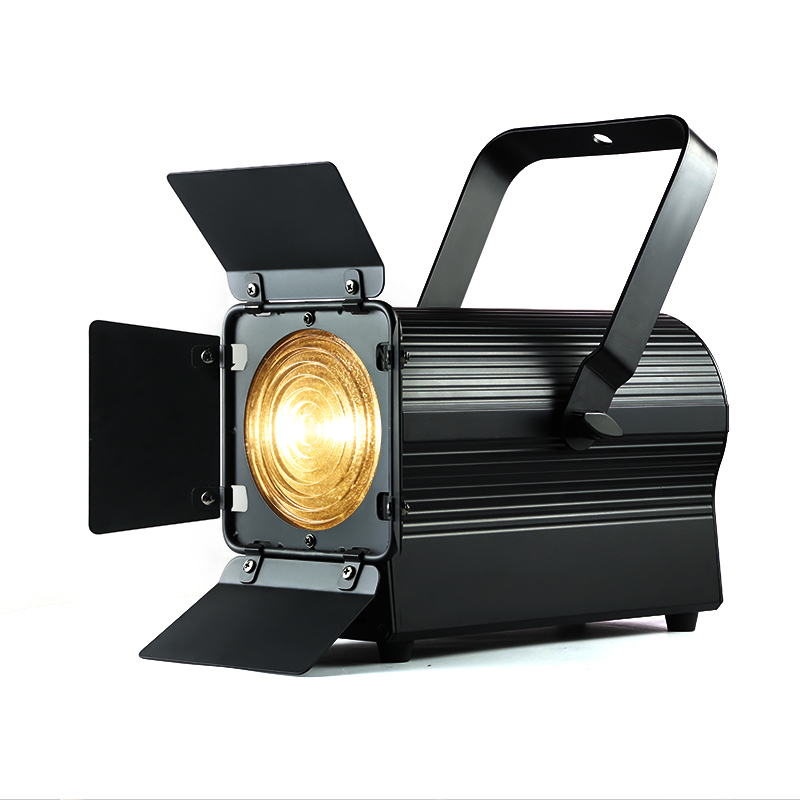

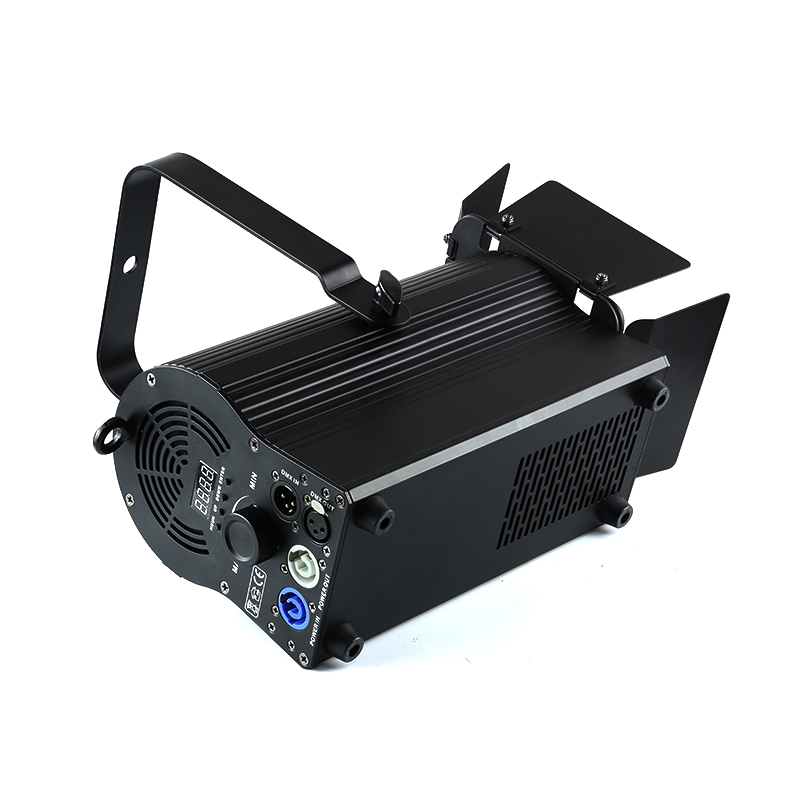

100W WW Fresnel Light With Manual Zoom

Product Video▼

Technical Specification▼

Source

Light source type: 100W

LED life expectancy: min. 50,000 hours

Optical system

Zoom range: 15-50°

Main features

LED Color: Warm white

Dimmer: 0~100% linearly adjustable

Zoom by manual

CRI:90

House Material: Die-casting Aluminum

House Color: Black,with barndoor

Control and programming

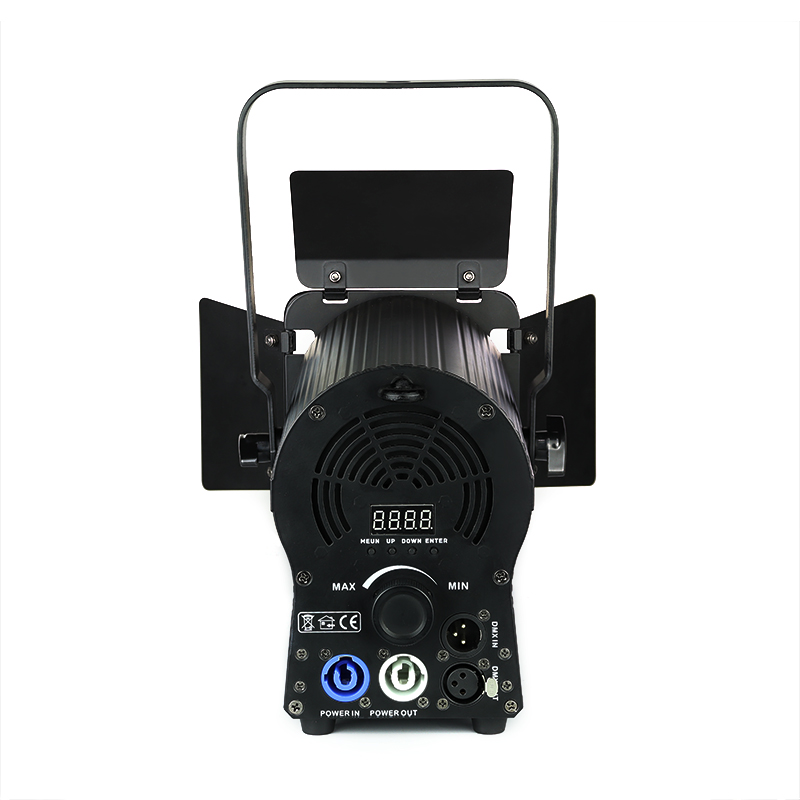

Setting & Addressing: two-row LCD display & 4 control buttons

Control mode: DMX 512, mater and slave, auto running

Control channels:2CH

Thermal specification

Maximum ambient temperature: 40 °C

Maximum surface temperature: 60 °C

Minimum operating temperature: -10 °C

Electrical specification and connections

Power supply: Electronic auto-ranging

Input voltage range: AC100V-240V  50-60Hz

Power consumption: Max. 95W

Power connect:power cable

Approvals

CE Compliant

ROSH Compliant

Mechanical specification

Net weight: kgs

Gross weight: kgs

Included items

User Manual

DMX Cable
