Product Video▼
Source
Lamp: LED
Colour Temperature: 6000 K
Ballast: Electronic
Optical system
Beam angle: 3°
Main features
Beam,Gobo,Frost
1 LED (white) 120 W, 50,000 hours life expectancy
Colors: 12 + white
Gobo Wheel:15 gobos,gobo shake
Prism:8-facet circualr prism rotating, 6-facet linear prism rotating
Motor: 12
Strobe Rate: 0 to 20 Hz
Control
Setting & Addressing: two-row LED display & 4 control buttons
Control mode: DMX 512, Auto, Master-slave
Channel: 16CH
Thermal specification
Maximum ambient temperature: 40 °C(104℉)
Maximum surface temperature: 90 °C(194℉)
Minimum operating temperature: -20 °C(68℉)
Electrical specification and connections
Power supply: Electronic auto-ranging
Input voltage range: 100-240 V, 50/60 Hz
Power consumption: 150 W

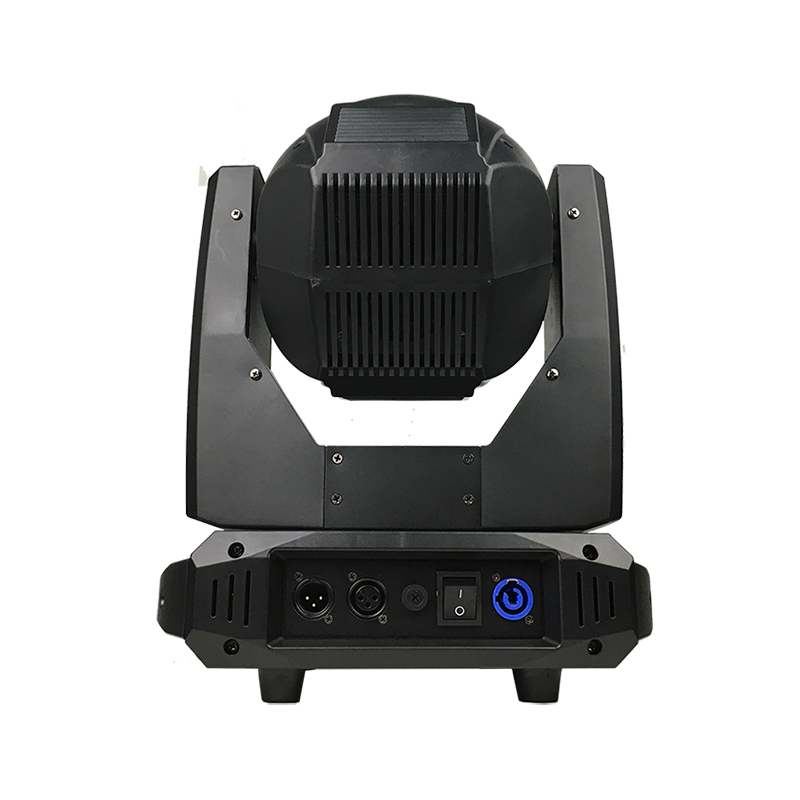

Power connector in/out: powerCON/Out
DMX data in/out: Locking 3-pin XLR
Movement
Pan/Tilt movement: 540/270 degrees (16bit) Electric correction
Approvals
CE Compliant
ROSH Compliant
Mechanical specification
Height: 390mm (15.4")
Width: 240mm (9.4")
Lenth: 320mm (12.6")
Weight: 12.15kg
Ingress protection rating: IP20
Included items
User Manual
Power Cable
Signal Cable
Omega
Optional accessories
Lamp Hook
Safety Wire
