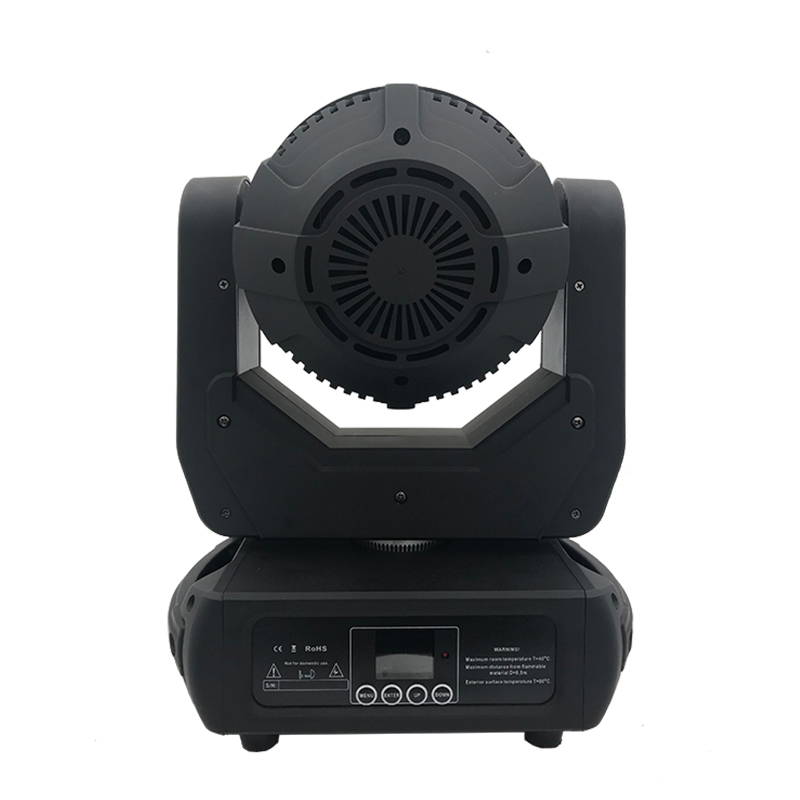

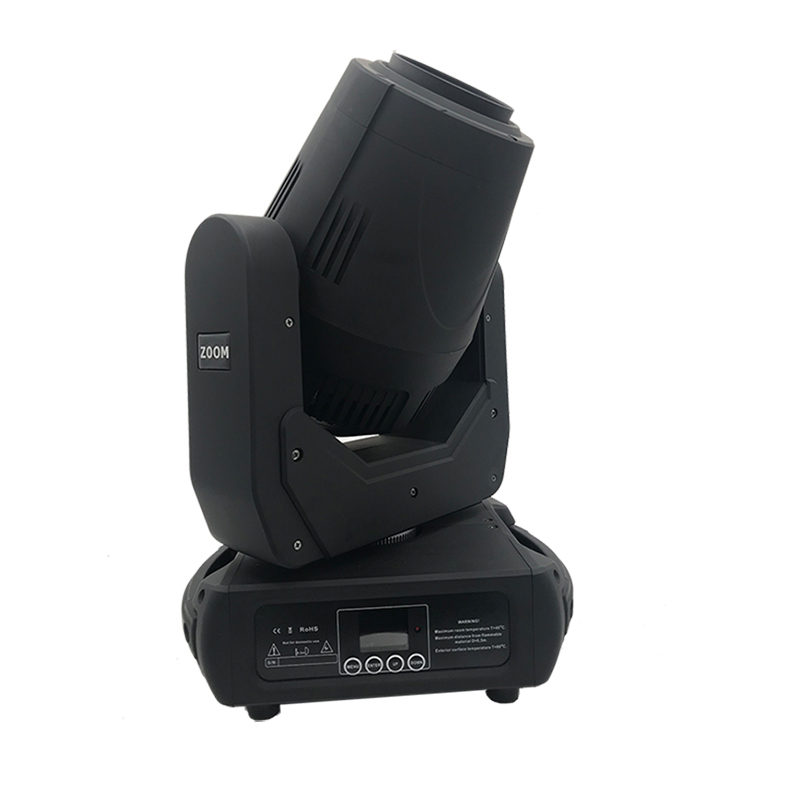

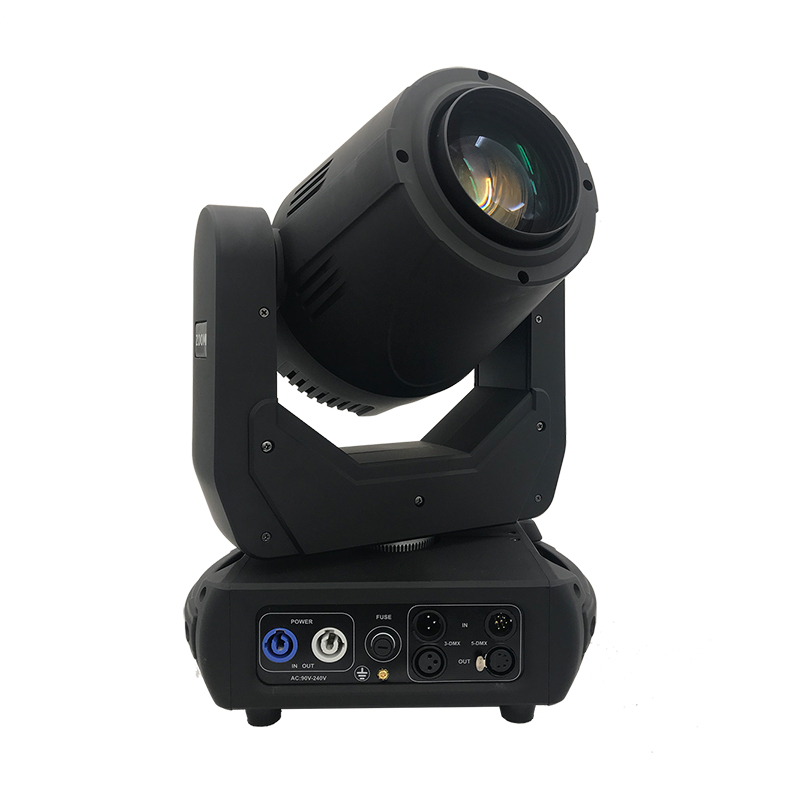

150W LED BSW moving head

Availability:
Quantity:
  • LH-C073


Product Video


Technical Specification


Source


Lamp: LED

Colour Temperature: 6000 K

Ballast: Electronic


Optical system

Zoom range: 4.5°~22 °



Main features

High light output, 10500LUX@5M at White light zoom in, 990LUX@5M at White light zoom out

150W LED moving head

1 Color Wheel: 7 colors+white, color fine tuning, rotation with variable direction and speed

1 Rotation Gobo Wheel: 5 gobos + 2 open, wheel rotation and shake

Prism: 8-facet Prism, bi-directional rotatable at variable speeds

High speed strobe effect with 1-25 flashers per second

Internal program available

Temperature protect function, when the internal Temperature is up to 40° then the fans begin to work, when the internal temperature is up to 70°and the brightness reduce half.


Control

Setting & Addressing: Colorful LCD display & 4 control buttons

Control mode: DMX 512, Auto, Master-slave, Sound

Channel:16/14 DMX Channels USITT DMX-512


Thermal specification

Maximum ambient temperature: 40 °C(104℉)

Maximum surface temperature: 90 °C(194℉)

Minimum operating temperature: -20 °C(68℉)


Electrical specification and connections

Power supply: Electronic auto-ranging

Input voltage range: 100-240 V, 50/60 Hz

Power consumption: 265 W

LED Source: Front:150W LED moving head

Power connector in/out: powerCON/Out

DMX data in/out:3-pin & 5-pin XLR connectors IN/OUT


Movement

Pan/Tilt movement:540/270 rotating


Approvals

CE Compliant

ROSH Compliant


Mechanical specification

Height: 482mm

Width: 220mm

Lenth: 328mm

Weight: 12.35 kg

Gross Weight: 14.95kg

Packing size: 365(L)*290(W)*600(H)mm

Ingress protection rating: IP20


Included items

User Manual

Power Cable

Signal Cable

Omega


Optional accessories

Lamp Hook

Safety Wire
