LH-J019

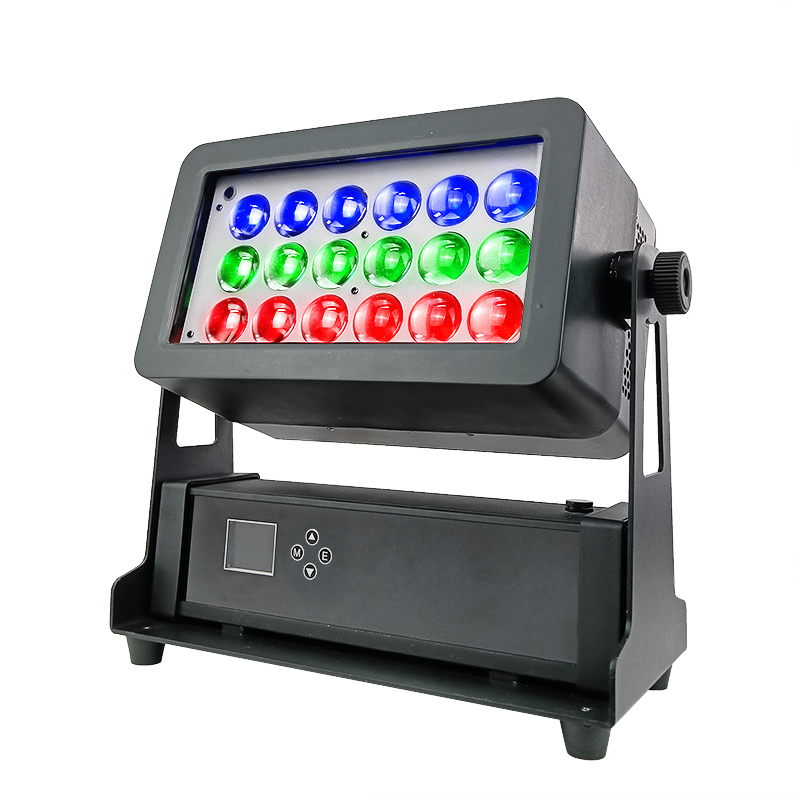

18x15w is an IP65 rated strobe wash blinder luminaire with motorized zoom. Featuring (18) high power 15W 4-in-1 RGBW LEDs, 17° to 44° motorized zoom, manual tilt adjustment, 3sections control individual,a rugged design with a solid build quality.
Source
Lamp: LED
Optical system
Beam Angle:17-44°
Main features
Colour mixing: RGBW
Wash , Strobe Effect
CRI: White light: 67; Red, green and blue light: 70
Electronic strobe effect with variable speed up to 10 Hz, pre-programmed random strobe & pulse effects
High resolution electronic dimming: 0 - 100%
Suitable for all types of production in DJ,Disco,Concert,Garden,Wine bar,Theatre and TV
Control
Setting & Addressing: two-row LCD display & 4 control buttons
Control mode:DMX512 , Auto, Master-slave, LED LCD screen+key control
Channel: 10/21CH
Thermal specification
Maximum ambient temperature: 40 °C(104℉)
Maximum surface temperature: 90 °C(194℉)
Minimum operating temperature: -20 °C(68℉)
Electrical specification and connections
Power supply: Electronic auto-ranging
Input voltage range: 100-240 V, 50/60 Hz
Power consumption: 270 W
LED Source: 18pcs 15W RGBW 4-IN-1 LED
IP65 Power connector in/out
DMX data in/out: Locking 3-pin XLR
Approvals
CE Compliant
ROSH Compliant
Mechanical specification
Net Weight: 11.17 kg
Prpduct size:140*70*150mm(L*W*H)
Ingress protection rating: IP66
Included items
User Manual
Power Cable
Signal Cable
Optional accessories
Lamp Hook
Safety Wire
Omega
