Technical Specification▼

Optical System

Input power:AC100-240V 50HZ-60HZ

Power consumption :1500w

Specification

Light source:Beam(Strobe) array: 240 * 5W white LED

                    Aura(Backlight)array: 64x0.6w RGB LED

Control mode:DMX 512, master-slave , sound , Auto

Display:Colorful LCD display

Strobe: 0-24/s

IP Rate:IP20

Electrical /THERMAL

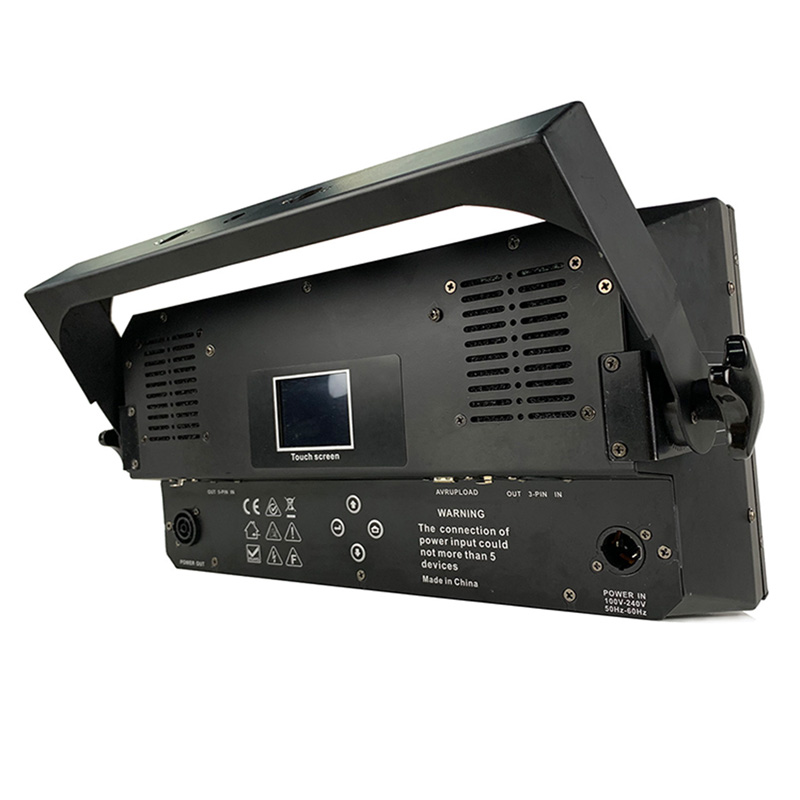

Power connector: PowerCON IN/ OUT

Data socket : 3-pin+5-pin DMX In and Out

Control and Programming

Control channels:3/4/14CH

Mechanical Specification

H: 240mm

W:260 mm

L: 510mm

N.W: 8.3kg

Approvals Certificate

CE Compliant

ROSH Compliant

Included items

User Manual

Power Cable

DMX Cable

Optional accessories

Clamp

Safety wire
