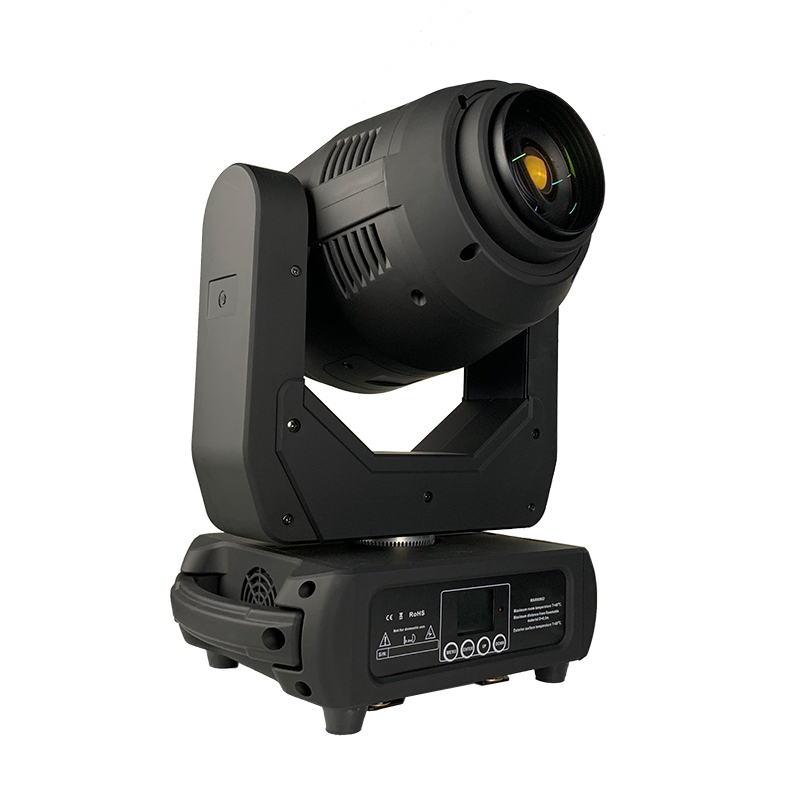

250w LED BSW moving head light

Zoom angle 5.5°~30°, focus function
  • LH-C076

Product Video

Technical Specification


Lamp: LED

Colour Temperature: 6000 K

Ballast: Electronic

Optical system

Zoom range:5.5° - 30°

Main features

High light output,13300LUX@5M at White light zoom in,

950LUX@5M at White light zoom out

 Temperature protect function, when the internal Temperature is up to 40° then the fans begin to work, when the internal temperature is up to 70°and the brightness reduce half.

 Color Wheel: 7 colors +white, color fine tuning, rotation with variable direction and speed

1 Rotation Gobo Wheel: 7 gobos + white, wheel rotation and shake

1 Static Gobo Wheel: 8 gobos + white, wheel rotation and shake

 Prism: 8-facet Prism, bi-directional rotatable at variable speeds

 Frost effect

High speed strobe effect with 1-25 flashers per second

Internal program available


Colorful LCD display

Control mode:DMX 512, master-slave and sound activated or auto operation

Channel:16/18 DMX Channels USITT DMX-512

Thermal specification

Maximum ambient temperature: 40 °C(104℉)

Maximum surface temperature: 90 °C(194℉)

Minimum operating temperature: -20 °C(68℉)

Electrical specification and connections

Power supply: Electronic auto-ranging

Input voltage range: 100-240 V, 50/60 Hz

Power consumption: 250 W

LED Source: 250W High Output White LED

PowerCon IN/OUT

3-pin & 5-pin XLR connectors IN/OUT


Pan/Tilt movement: Pan 540,Tilt 270


CE Compliant

ROSH Compliant

Mechanical specification

Height: 480mm (18.9")

Width: 220mm (8.7")

Depth: 320mm (12.6")

Weight: 13.5 kg

Ingress protection rating: IP20

Included items

User Manual

Power Cable

Signal Cable


Optional accessories

Lamp Hook

Safety Wire
