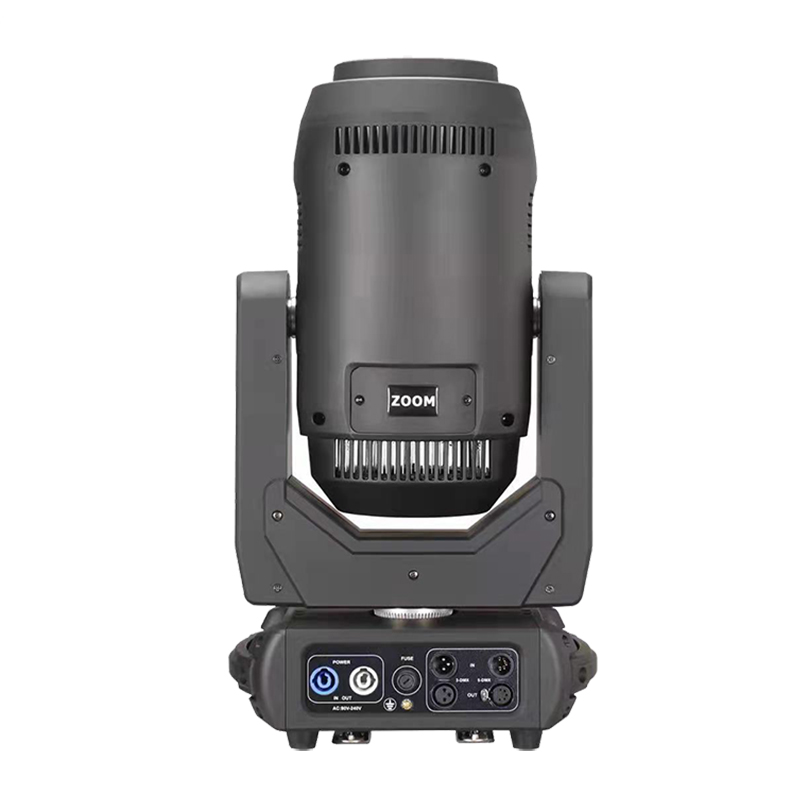

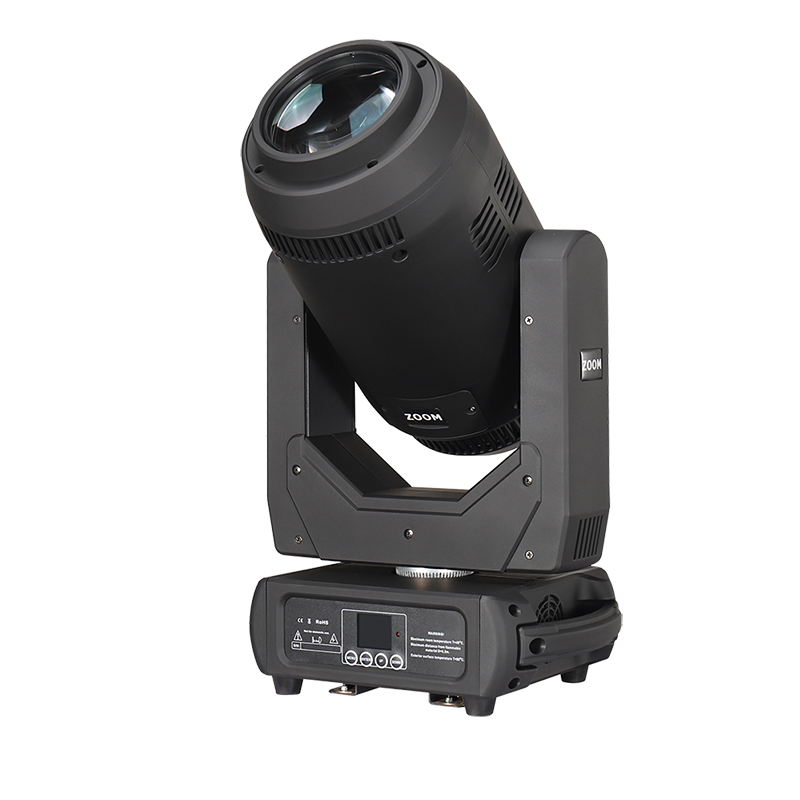

350W LED spot beam wash 3in1 BSW hybrid Moving Head Light

Availability:
Quantity:
  • LH-C090

Product Video


Technical Specification


Source

Lamp: LED

Colour Temperature: 6000 K

Ballast: Electronic


Optical system

Zoom range: 8~35°, focus function


Main features

Beam,Spot,Wash 3in1 ,Frost

Color Wheel: 7 colors +white, color fine tuning, rotation with variable direction and speed,with rainbow effect.

1 Rotation Gobo Wheel: 7 gobos +white, wheel rotation and shake,The gobo plate is Removable,

it is more convenient to change the gobo

1 Static Gobo Wheel: 8 gobos + white, wheel rotation and shake

Prism: 8-facet Prism, bi-directional rotatable at variable speeds

Frost effect

High speed strobe effect with 0.3-25 flashers per second

Internal program available


Control

Setting & Addressing: two-row LED display & 4 control buttons

Control mode: DMX 512, Auto, Master-slave

Channel: 16/18 DMX Channels USITT DMX-512


Thermal specification

Maximum ambient temperature: 40 °C(104℉)

Maximum surface temperature: 90 °C(194℉)

Minimum operating temperature: -20 °C(68℉)


Electrical specification and connections

Power supply: Electronic auto-ranging

Input voltage range: 100-240 V, 50/60 Hz

Power consumption: 350 W

PowerCon IN/OUT

3-pin & 5-pin XLR connectors IN/OUT


Movement

Pan/Tilt movement: 540/270 degrees (16bit) Electric correction


Approvals

CE Compliant

ROSH Compliant


Mechanical specification

Height: 590mm (15.423.2")

Width: 222mm (8.7")

Lenth: 312mm (12.2")

Weight: 16kg

Ingress protection rating: IP20


Included items

User Manual

Power Cable

Signal Cable

Omega


Optional accessories

Lamp Hook

Safety Wire
