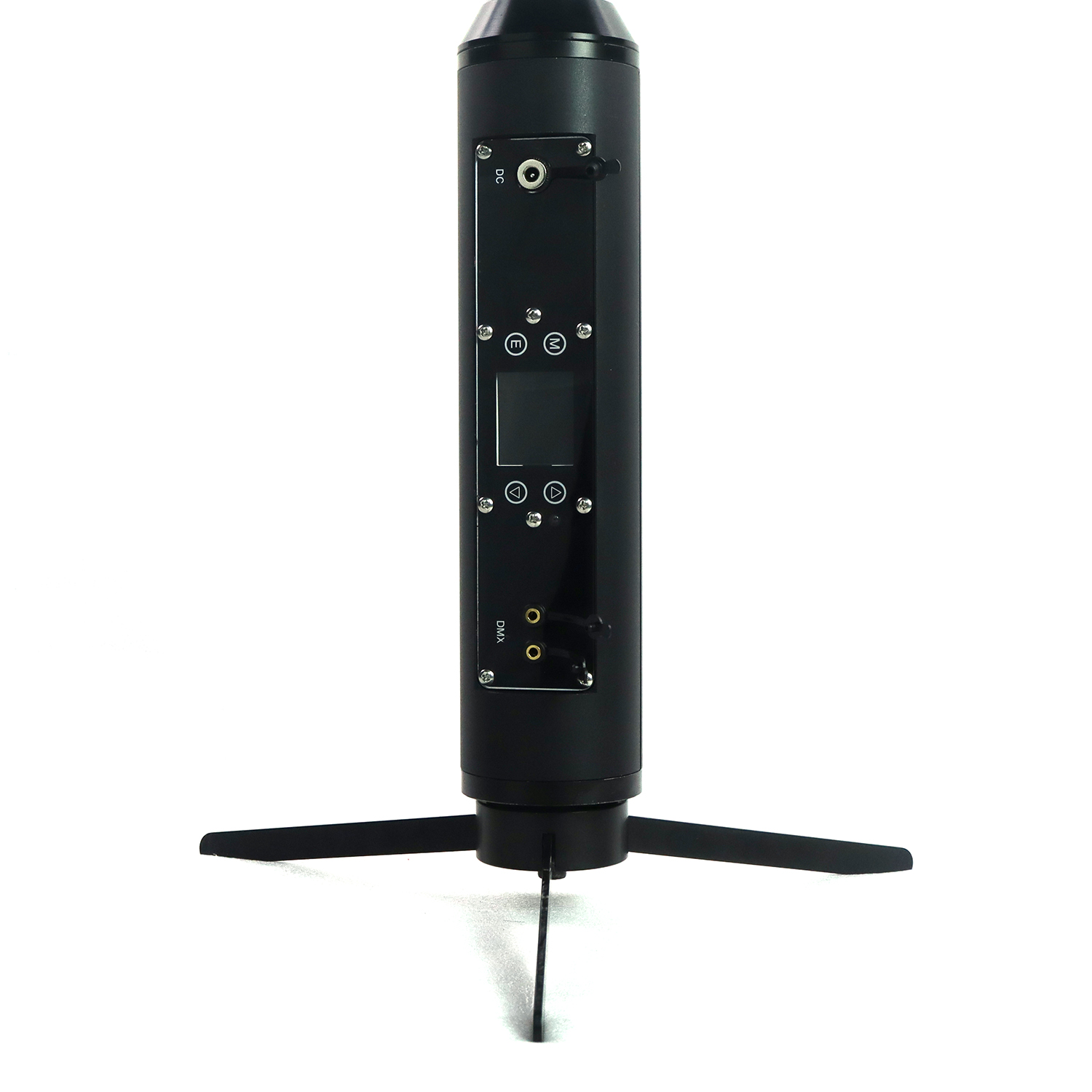

360 RGBWA Tube Outdoor Wireless Battery Pixel

360 RGBWA
24 Pixel Control

Availability:
Quantity:
  • LH-F096C

Product Video






Technical Specification



Optical System

Input power:AC100-240V 50/60 Hz

Power consumption :60/45/30 W



Specification

288*0.25W LED RGBWA,24 PIXEL zone control

Control mode:Auto,Sound,DMX,wireless   DMX,Remote

Display: Touch display

IP Rate:IP65

Tube material: PC



Electrical /THERMAL

Power connector: DC Charging Port

DMX in/out:  3-pin XLR

-5°C-45 °C (23°F-104 °F)



Control and Programming

DMX Protocol modes: 3

Control channels: 10/52/124CH

Dimmer: 3 optional(M1/M2/M3)


Mechanical Specification

Length: 1552mm

Diameter: 59mm

Weight: 4.12kg



Battery Parameter

Battery type: Lithium Ion

Battery charge time: 5hour

Battery life: Battery Life:4/6/8 hours(all on)optional, more than 20hours(single color)

Battery capacity:12.6V  12000mAH



Package

8in1 Flycase Size: MM,, weight: 60KG

2in1 carton size:1650*380*170mm  13KG



Approvals Certificate

CE Compliant

ROSH Compliant



Included items

User Manual

Power Cable

DMX Cable

Tripods

M8 ring


Optional accessories
