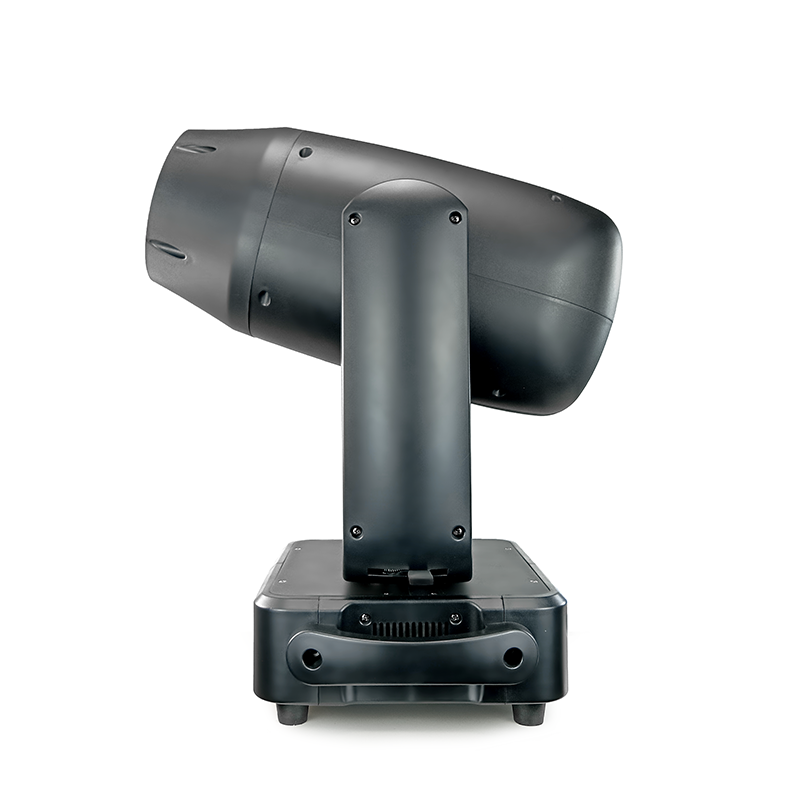

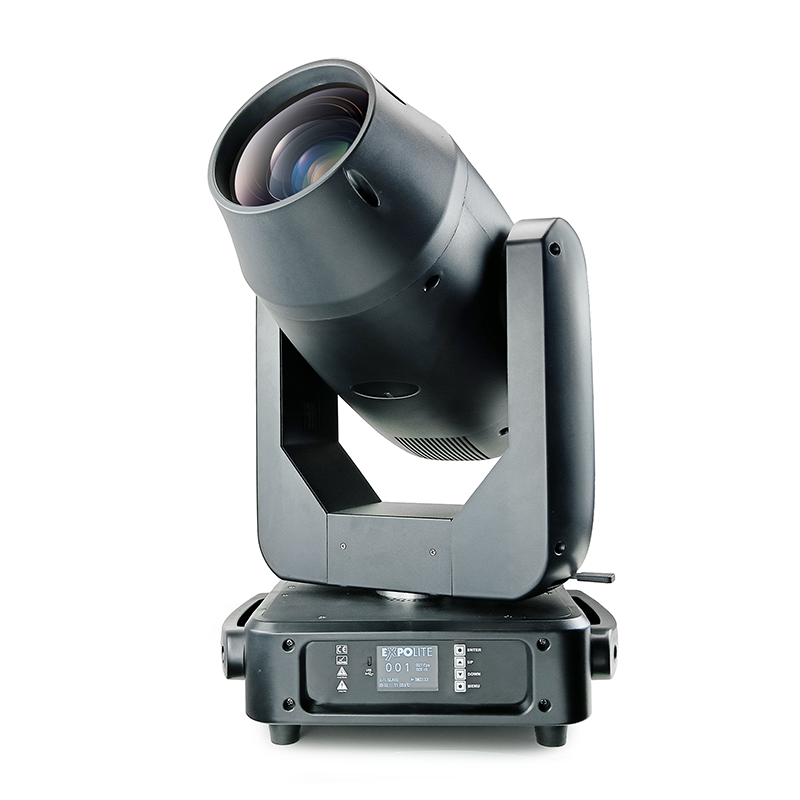

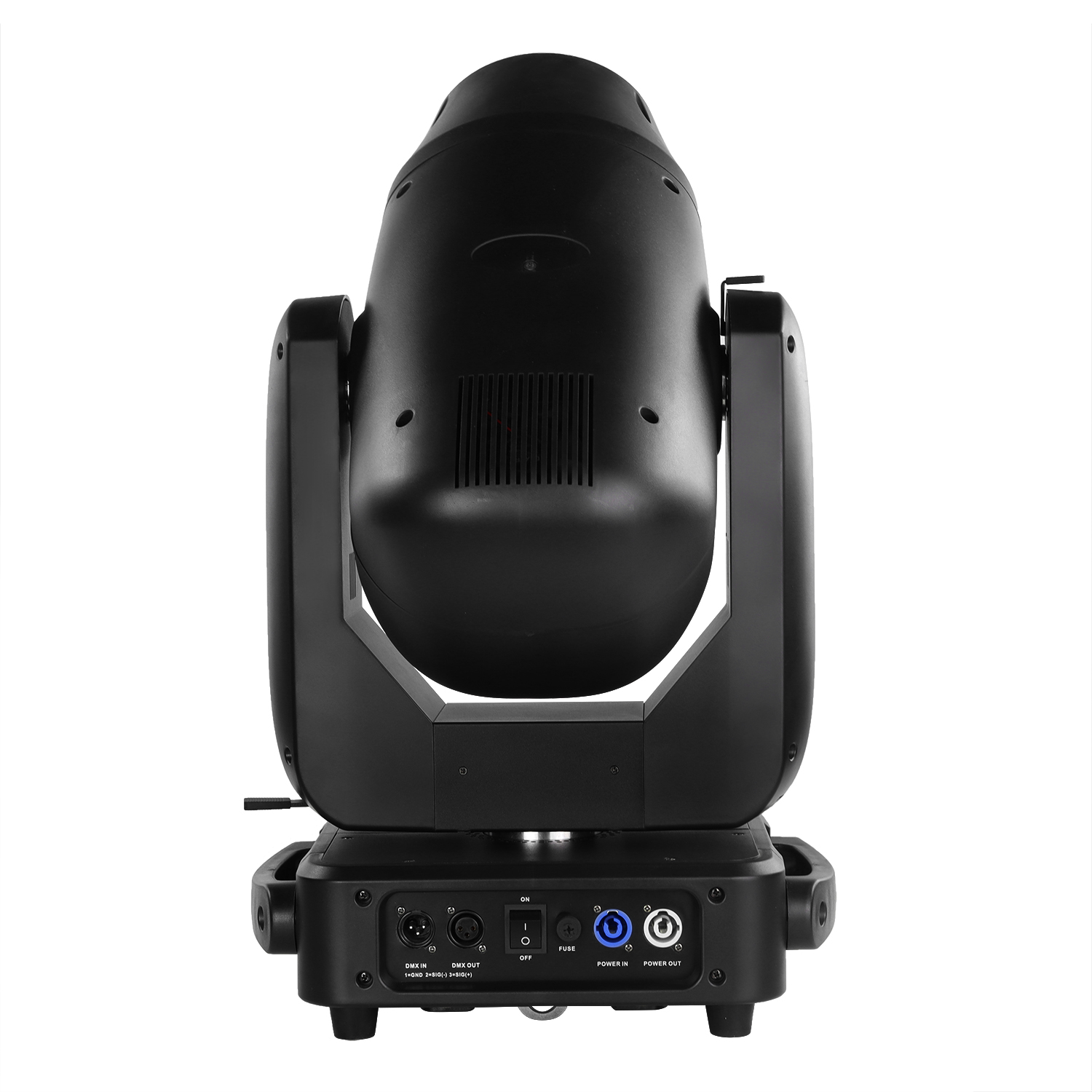

400W BSW CMY Led Moving Head Light

Beam,Wash,Spot 3in1,zoom effect
with CMY
Availability:
Quantity:
  • LH-C084

Product Video


Technical Specification


Source

Lamp: LED

Colour Temperature: 6000 K

Ballast: Electronic


Optical system

Zoom range: 3-45degree


Main features

Beam , Spot,Wash ,Compact design and working fast

CMY Wheel: Cyan, Magenta, Yellow, Smooth color mixing

Strobe:Independent strobe channel, 1-13times/s, speed adjustable

Dimmer: Smooth dimmer from 0-100%

2 Prisms: Prism1: 4 circle prism; Prism2: 4 Linear prism,with rotate function, variable speed

Color wheel: 12colors+white

Static gobo wheel: 11gobos+white

Rotate gobo wheel: 7gobos+white

Frost: one Frost wheel

LED life expectancy: min,50000 hrs


Control

LCD display, 180degree Reversal Available

Control mode: DMX 512, Auto, Master-slave,Sound

Channel: 26CH


Thermal specification

Maximum ambient temperature: 40 °C(104℉)

Maximum surface temperature: 90 °C(194℉)

Minimum operating temperature: -20 °C(68℉)


Electrical specification and connections

Power supply: Electronic auto-ranging

Input voltage range: 100-240 V, 50/60 Hz

Power consumption: 450 W

LED Source: :LED 400W White

Power connector: Powercon In/Out

Data connector: 3pin XLR In/Out


Movement

Pan/ Tilt movement range: 540/270 degrees


Approvals

CE Compliant

ROSH Compliant


Mechanical specification

Height: 660mm (26.1")

Width: 275mm (10.8")

Depth: 380mm (15.1")

Weight:23kg

Ingress protection rating: IP20


Included items

User Manual

Power Cable

Signal Cable

Omega


Optional accessories

Lamp Hook

Safety Wire
