Technical Specification▼

Source

Lamp: LED

Colour Temperature: 6000 K

Ballast: Electronic

Optical system

Zoom range: 3° - 35°

Main features

Colour mixing: RGBW

Beam , Wash , Strobe,Spot Multiple Effect

White light: Variable CCT 2.700K - 8.000K

Electronic zoom

Electronic strobe effect with variable speed up to 20 Hz, pre-programmed random strobe & pulse effects

High resolution electronic dimming: 0 - 100%

(Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black

Suitable for all types of production in DJ,Disco,Concert,Garden,Wine bar,Theatre and TV Show

Control

Setting & Addressing: two-row LCD display & 4 control buttons

Control mode: DMX 512, Auto, Master-slave, Sound

Channel: 25/45CH

Thermal specification

Maximum ambient temperature: 40 °C(104℉)

Maximum surface temperature: 90 °C(194℉)

Minimum operating temperature: -20 °C(68℉)

Electrical specification and connections

Power supply: Electronic auto-ranging

Input voltage range: 100-240 V, 50/60 Hz

Power consumption: 250 W

LED Source: Front: 4x 60W RGBW 4in1 LED

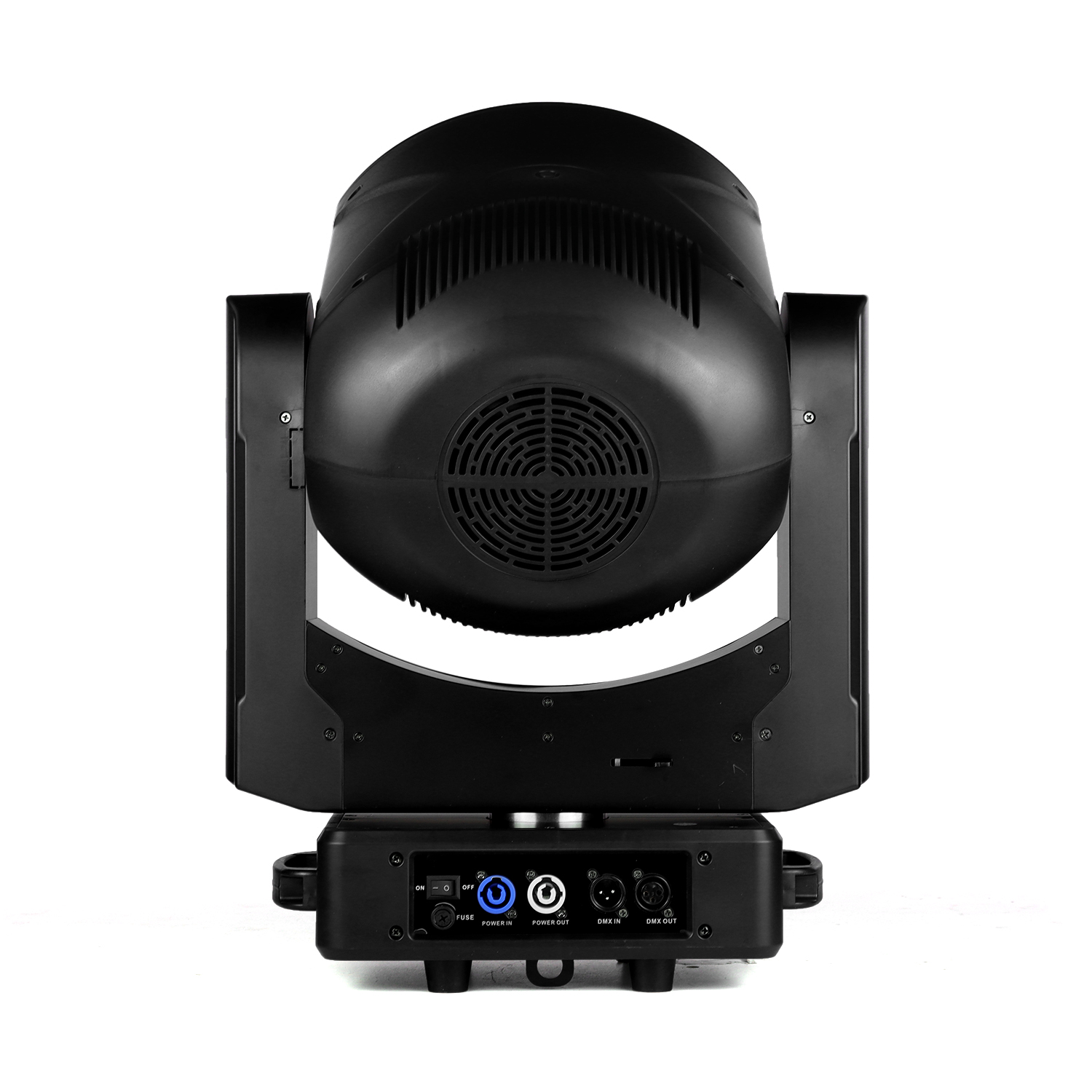

Power connector in/out: powerCON/Out

DMX data in/out: Locking 3-pin XLR

Movement

Pan movement:540 degree

Tilt movement: 270 degree

Approvals

CE Compliant

ROSH Compliant

Mechanical specification

Height: 573mm (22.5")

Width:194  mm (7.6")

Length: 353mm (13.9")

Weight: 21.5 kg

Ingress protection rating: IP20

Included items

User Manual

Power Cable

Signal Cable

Omega

Optional accessories

Lamp Hook

Safety Wire
