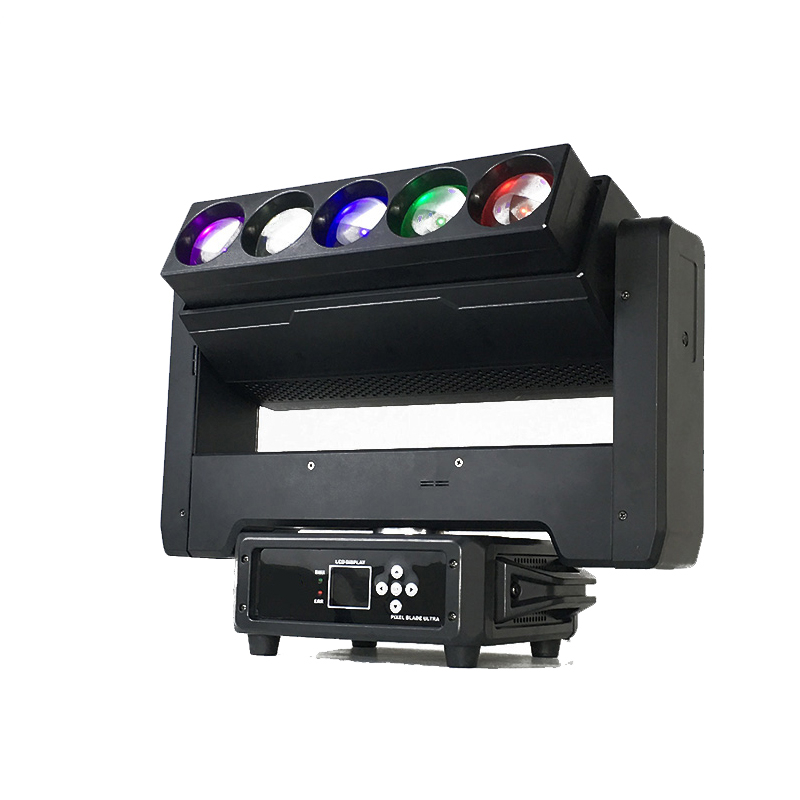

5x60w rgbw led moving head light

Pixel Zoom Beam Strobe Light
Availability:
Quantity:
  • LH-C089

Product Video





Technical Specification

Source


Lamp: LED

Colour Temperature: 6000 K

Ballast: Electronic


Optical system

Zoom range: 3.8° - 50°


Main features

LED each Pixel control

Colour mixing: RGBW

Beam , Wash , Strobe Multiple Effect, Pan Tilt infinite rotating

White light: Variable CCT 2.700K - 8.000K

Electronic zoom

Electronic strobe effect with variable speed up to 20 Hz, pre-programmed random strobe & pulse effects

High resolution electronic dimming: 0 - 100%

(Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black

Suitable for all types of production in DJ,Disco,Concert,Garden,Wine bar,Theatre and TV


Control

Setting & Addressing: two-row LCD display & 4 control buttons

Control mode: DMX 512, Auto, Master-slave, Sound

Channel: 24CH/29CH/105CH


Thermal specification

Maximum ambient temperature: 40 °C(104℉)

Maximum surface temperature: 90 °C(194℉)

Minimum operating temperature: -20 °C(68℉)


Electrical specification and connections

Power supply: Electronic auto-ranging

Input voltage range: 100-240 V, 50/60 Hz

Power consumption: 500 W

LED Source: Front: 5x 60W RGBW 4in1 LED;

Back :42x 3W White LED + 84x 0.3W RGB 3in1 LED

Power connector in/out: powerCON/Out

DMX data in/out: Locking 3-pin XLR


Movement

Pan/Tilt movement: 360 degree infinite rotating


Approvals

CE Compliant

ROSH Compliant


Mechanical specification

Height:443 mm (17.4")

Width: 195 mm (7.7")

Lenth:  624mm (24.6")

Weight: 13 kg

Ingress protection rating: IP20


Included items

User Manual

Power Cable

Signal Cable

Omega


Optional accessories

Lamp Hook

Safety Wire
