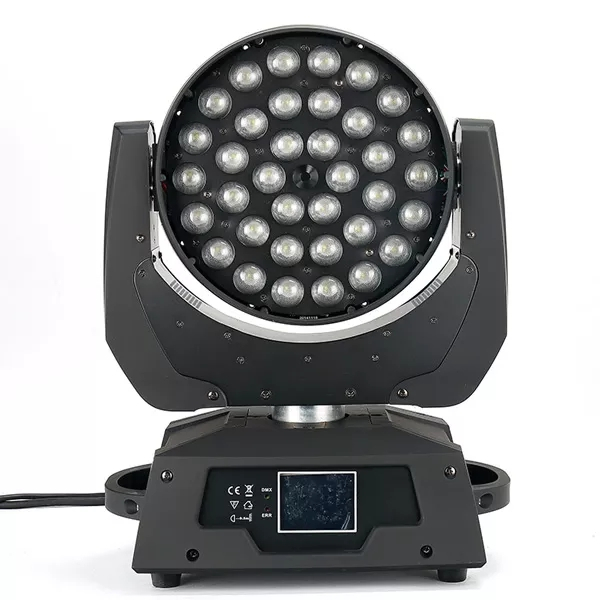

LH-C014D
Source
Lamp: LED
Colour Temperature: 6000 K
Ballast: Electronic
Optical system
Lense degrees: 10°- 60° focus
Main features
60,000 hours life span for LEDS and low power consumption
Intelligent temperature sensor for LEDS(over heat protection)
Color range with 16.7 millions additive RGBWA colors
High light output as 950LUX@ 7M at full
0-100% smooth linear dimmer with flicker free
20t/s strobe effect with variable speed
Pre-programmed random strobe and pulse effects
Built-in programs with macro effects
High definition blue TFT LCD display
Control
Setting & Addressing: two-row LCD display & 4 control buttons
Control mode: DMX 512, Auto, Master-slave, Sound
Channel: 18CH
Thermal specification
Maximum ambient temperature: 40 °C(104℉)
Maximum surface temperature: 90 °C(194℉)
Minimum operating temperature: -20 °C(68℉)
Electrical specification and connections
Input Voltage: AC90-260V 50/60Hz
Power Consumption: 650W
Light source:36*18W RGBWA+UV 6in1 LED
Power con connector
3-Pin XLR DMX input/output
Movement
Pan movement:540 degree
Tilt movement: 270 degree
Quiet, smooth and fast PAN/TILT movement
Approvals
CE Compliant
ROSH Compliant
Mechanical specification
Height: 445mm(17.5")
Width: 235mm(9.3")
Depth: 332mm(13.1")
Weight: 1 1kg
Ingress protection rating: IP20
Included items
User Manual
Power Cable
Signal Cable
Omega
Optional accessories
Lamp Hook
Safety Wire
