Battery LED 9pcs RGBWA+UV High Mast Light

Battery,remote and WIFI control
Availability:
Quantity:
  • LH-E034

Product Video






Technical Specification



Source


Lamp: LED

Colour Temperature: 6000 K

Ballast: Electronic


Optical system

Beam Angle: 15°


Main features

Colour mixing: RGBWA+UV

Wash , Strobe Multiple Effect

White light: Variable CCT 2.700K - 8.000K

Electronic strobe effect with variable speed up to 24Hz, pre-programmed random strobe & pulse effects

High resolution electronic dimming: 0 - 100%

Suitable for all types of production in Banquet,DJ,Disco,Concert,Garden,Wine bar,Theatre and TV


Control

Setting & Addressing: two-row LCD display & 4 control buttons

Control mode: DMX 512, Auto, Master-slave, Sound,Remote,Wireless

Channel: 2CH/6CH/10CH


Thermal specification

Maximum ambient temperature: 40 °C(104℉)

Maximum surface temperature: 90 °C(194℉)

Minimum operating temperature: -20 °C(68℉)


Electrical specification and connections

Power supply: Electronic auto-ranging

Input voltage range: 100-240 V, 50/60 Hz

Power consumption:90 W

LED Source: Front: 9x 10W RGBWA+UV 6in1 LED

Power connector in/out: powerCON/Out

DMX data in/out: Locking 3-pin XLR


Battery

Battery type: Lithium Ion

Battery Charge Time: 6hours(full power)

Battery Life: (all on) 4hours, (single Color) 24hours

Battery Power: 12V, 25Ah

Wireless effective distance: 400meters


Approvals

CE Compliant

ROSH Compliant


Mechanical specification

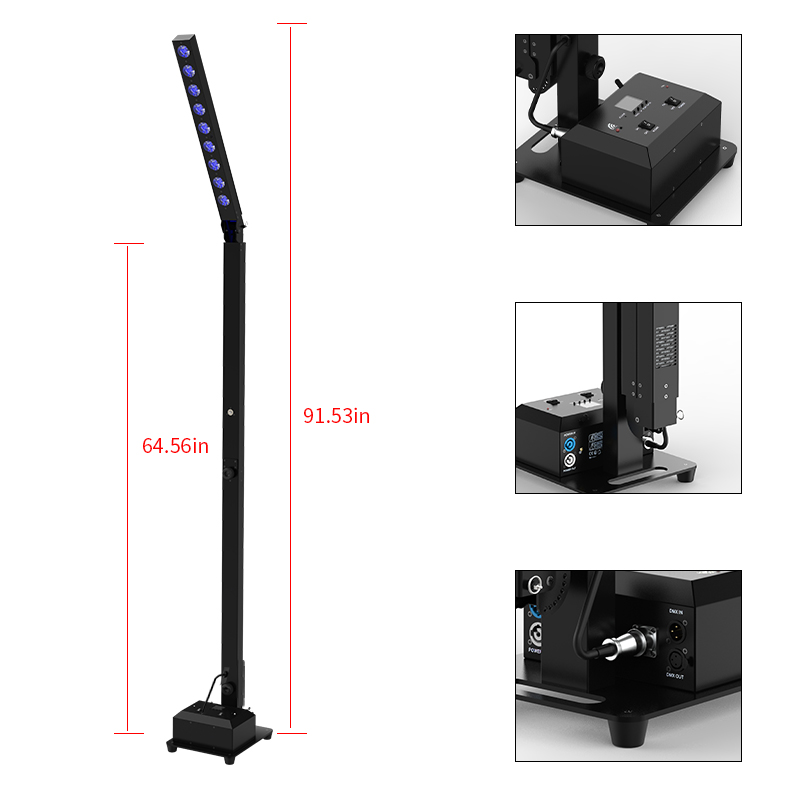

Height: 2000mm (78.7")

Width:250  mm (9.8")

Length: 250mm (9.8")

Weight: 13 .4kg

Ingress protection rating: IP20


Included items

User Manual

Power Cable

Signal Cable

Omega


Optional accessories

Lamp Hook

Safety Wire
