LH-C106
Source
Light Source: 18pcs 40W RGBW 4in1
Optical system
Zoom angel :4.2~45°
Control
Colorful LCD display
Control mode: DMX 512,Sound active, Auto mode, master-slave
DMX Channels: 36/22ch
Thermal specification
Maximum ambient temperature: 40 °C(104℉)
Maximum surface temperature: 90 °C(194℉)
Minimum operating temperature: -20 °C(68℉)
Electrical specification and connections
Input Voltage: AC100-240V 50/60Hz
Power: 750W
Cooling : Efficient low noise fan cooling system
Dimmer: 0-100% electronic
Shutter: 24t/s strobe effect with variable speed
Power connector : Powercon/IN/OUT
DMX connector : 3-Pin XLR DMX input/output
Pan : 540° , 16 bit
Tilt : 210° , 16 bit
Approvals
CE Compliant
ROSH Compliant
Mechanical specification
Weight:22kg
Product Size:353X194X573mm
Ingress protection rating: IP20
Included items
User Manual
Power Cable
Signal Cable
Optional accessories
Lamp Hook
Safety Wire
Omega

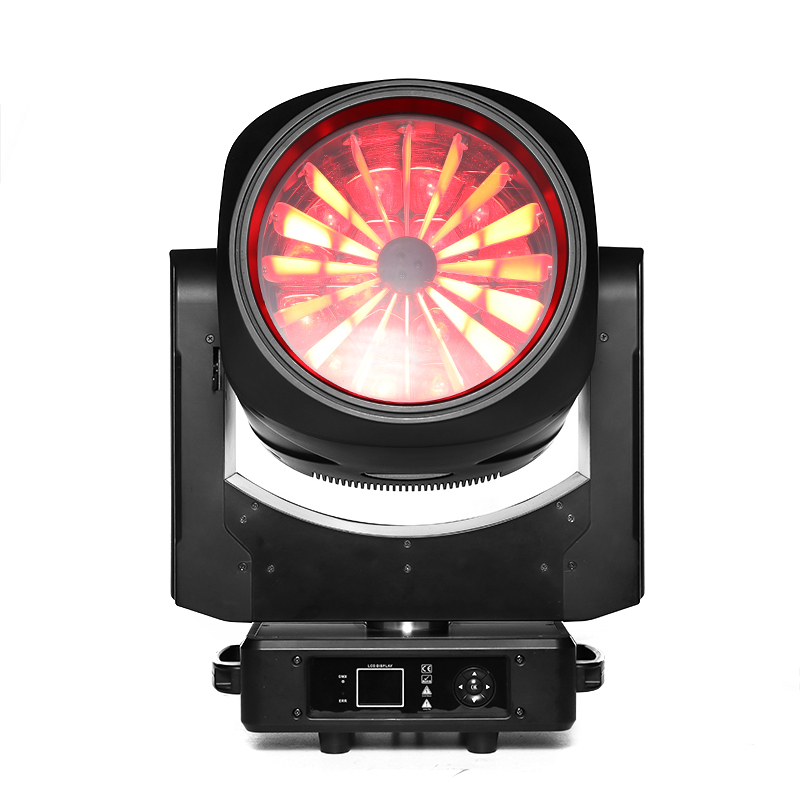

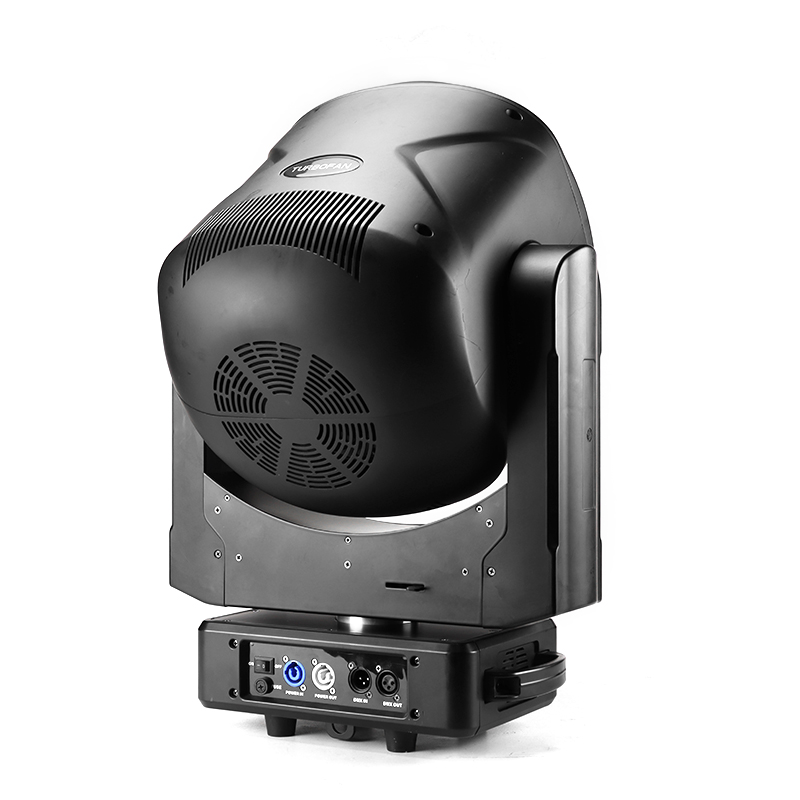

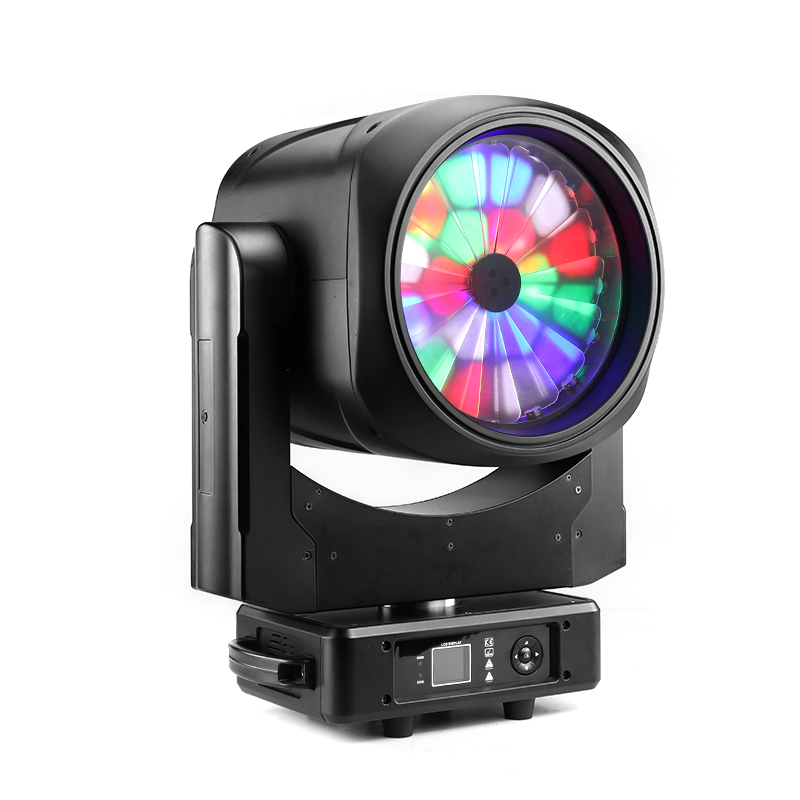

Introducing the Big-Eye 18*40W RGBW Turbofan Moving Head Light - a professional 18*40 RGBW LEDs moving head light for stages, club, and in many other situations. Big-Eye 18*40W RGBW Turbofan Moving Head Light is a unique and stylish LED stage light with bee eyes and tuibofan design. This is equipped with in total 18 x 40W RGBW LEDs, divided over 16 blades and 18 indivisual LEDs can be controlled via DMX as a stroboscopic effect with full RGBW color mix. All features can be adjusted by the 5 buttons control panel with LCD display. Within the tuibofan and bee eye design, it creates vibrant lighting and different wash frost effect.
