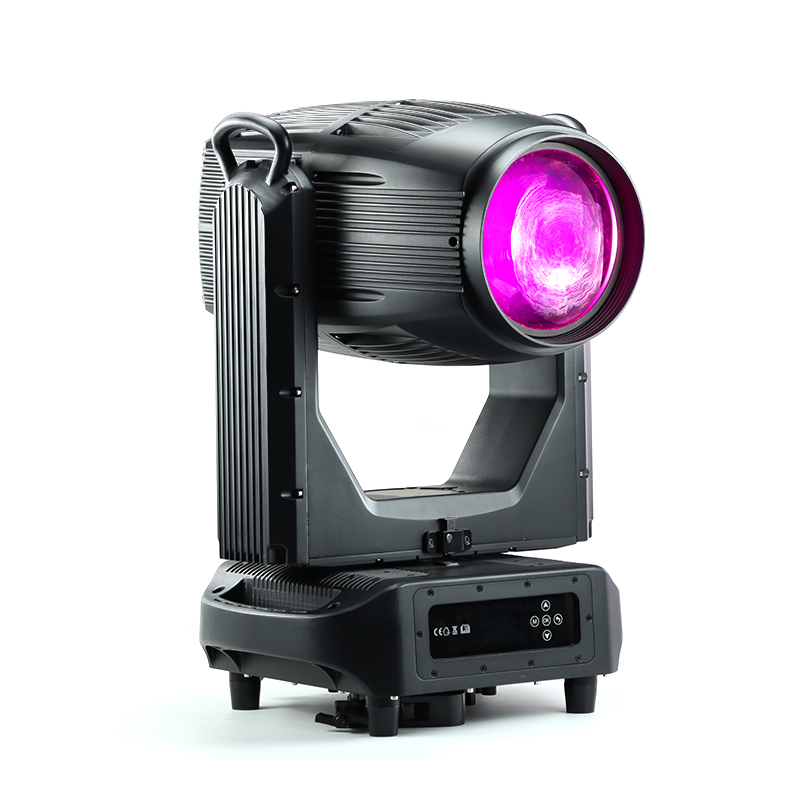

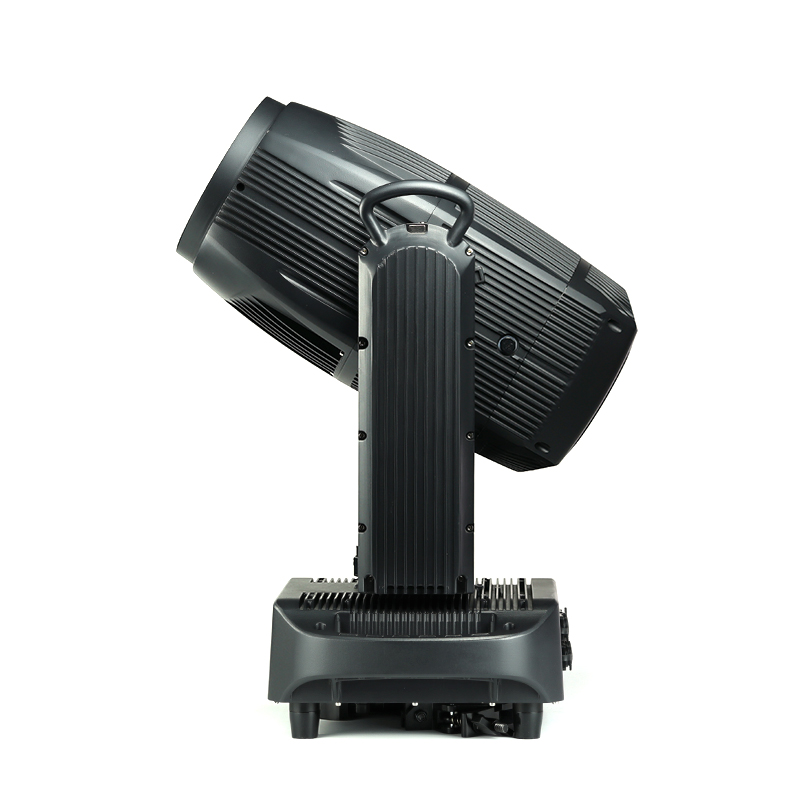

The CRUISER 470CMY automated fixtures from LEAHUA, is the brightest IP65 fully featured beam fixture ever created with incredible light output from a surprisingly compact fixture body.The extremely narrow 1.8° Beam ensures the fixture cuts effortlessly through the sky and is visible at great distances. The fixture is ideally suited for theme parks, cruise ships, outdoor special events, large scale shows and concerts, and any situation where a massive beam or very powerful prism and flower effects are required.
Source
Lamp: OSRAM 420W bulb
Optical system
Beam angle: 1.8°
Main features
Color temperature: 6500K
Electronic strobe effect with variable speed up to 25 Hz, pre-programmed random strobe & pulse effects
High resolution electronic dimming: 0 - 100%
4 Prisms: 6 linear prism+8&24&48 face prism,with rotate function, variable speed
Color wheel: 13 colors+white
Static gobo wheel: 13 gobos+white
Rotating gobo wheel:3 gobos,Can overlap with static gobo wheel
Rainbow wheel: 6-color palette
Frost: one Frost wheel
Control
Setting & Addressing: two-row LCD display & 5 control buttons
Control mode: DMX 512, Auto, Master-slave, RDM
Channel:24CH
Thermal specification
Maximum ambient temperature: 40 °C(104℉)
Maximum surface temperature: 90 °C(194℉)
Minimum operating temperature: -20 °C(68℉)
Electrical specification and connections
Input voltage range: 100-240 V, 50/60 Hz
Power consumption: 580 W

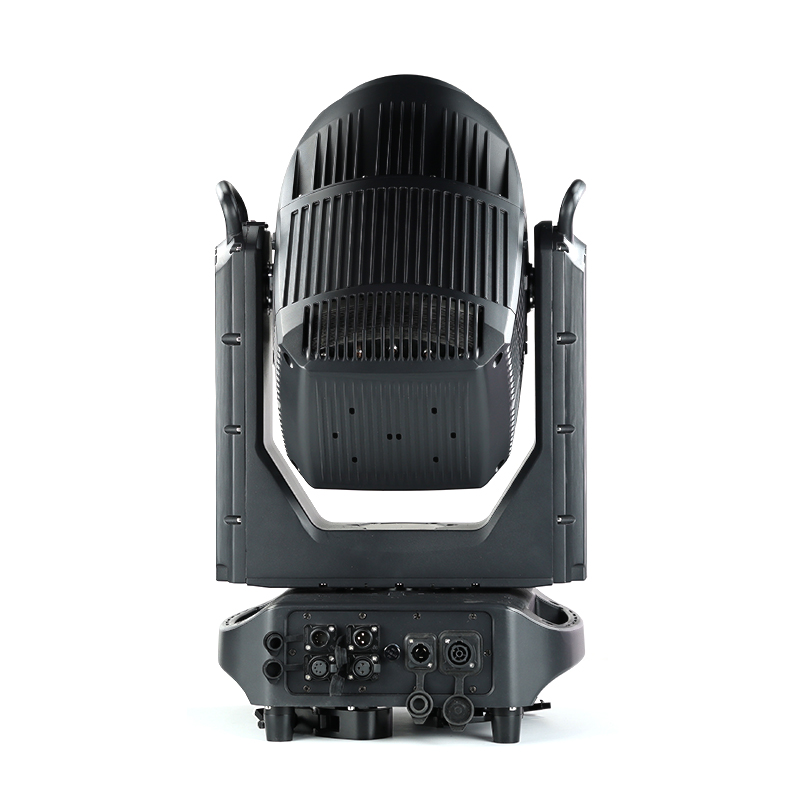

Power connector in/out: IP power CON/Out
DMX data in/out: Locking 3+5-pin XLR
Movement
Pan movement:540 degree
Tilt movement: 260 degree
Approvals
CE Compliant
ROSH Compliant
Included items
User Manualx1
Power Cablex1
Signal Cablex1
Omegax2
Optional accessories
Lamp Hook
Safety Wire
Mechanical specification
N.W.: 33kg
Product size:390*310*708mm
Carton packing size:570*488*792mm(1 pc/CTN)
Carton G.W.: 36kg
Flight case packing size: 800*600*930mm( 2pcs/case)
Flight case G.W.: 110kg
Ingress protection rating: IP65
