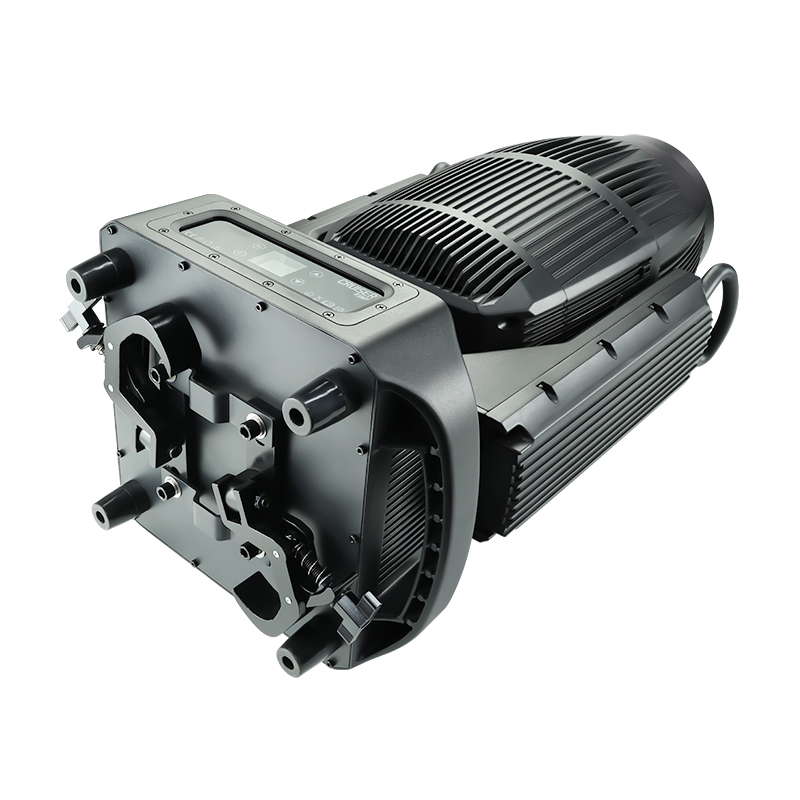

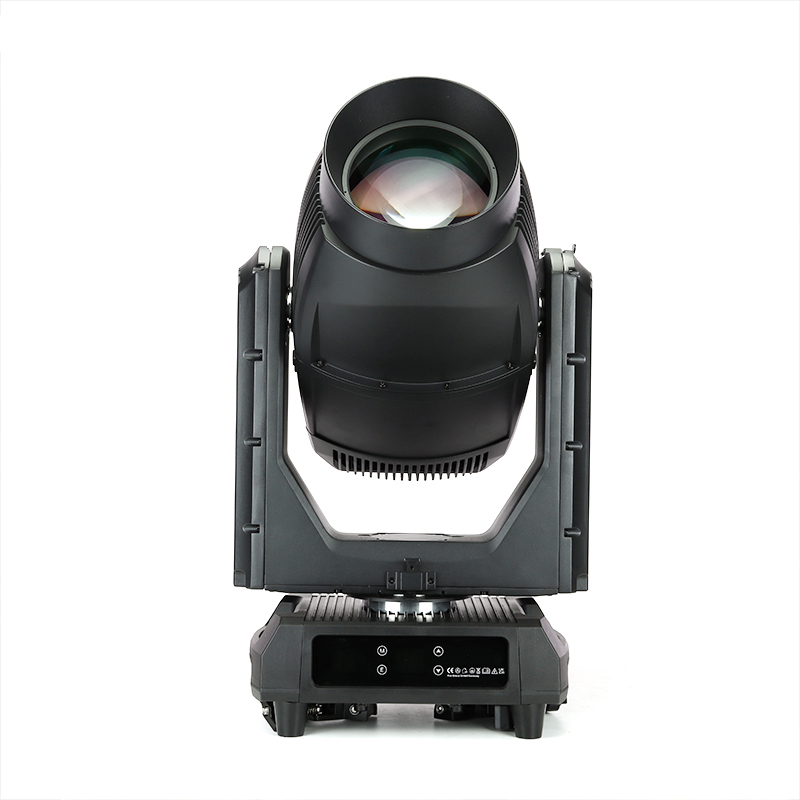

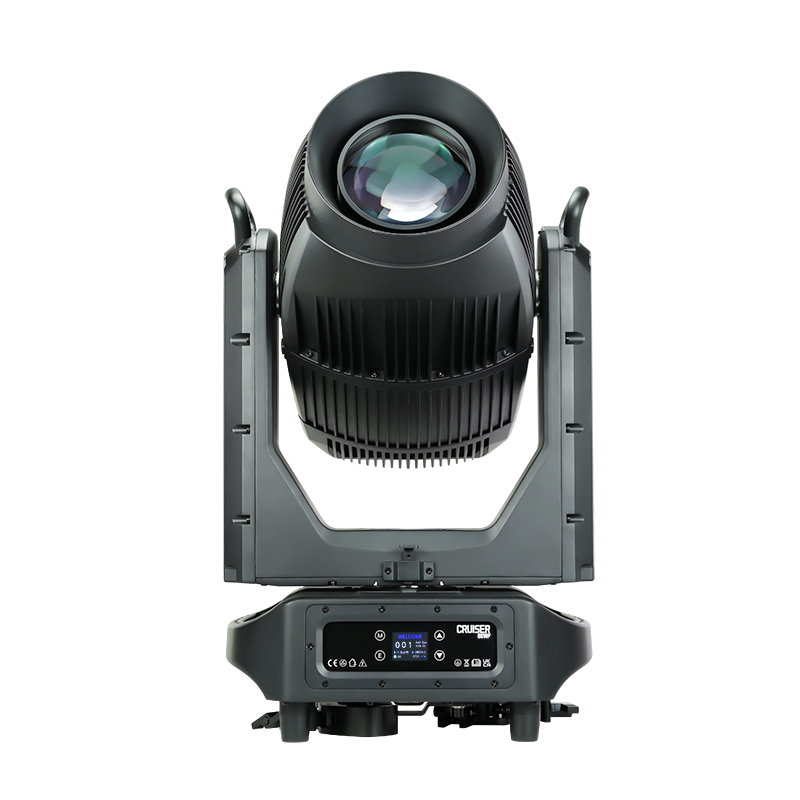

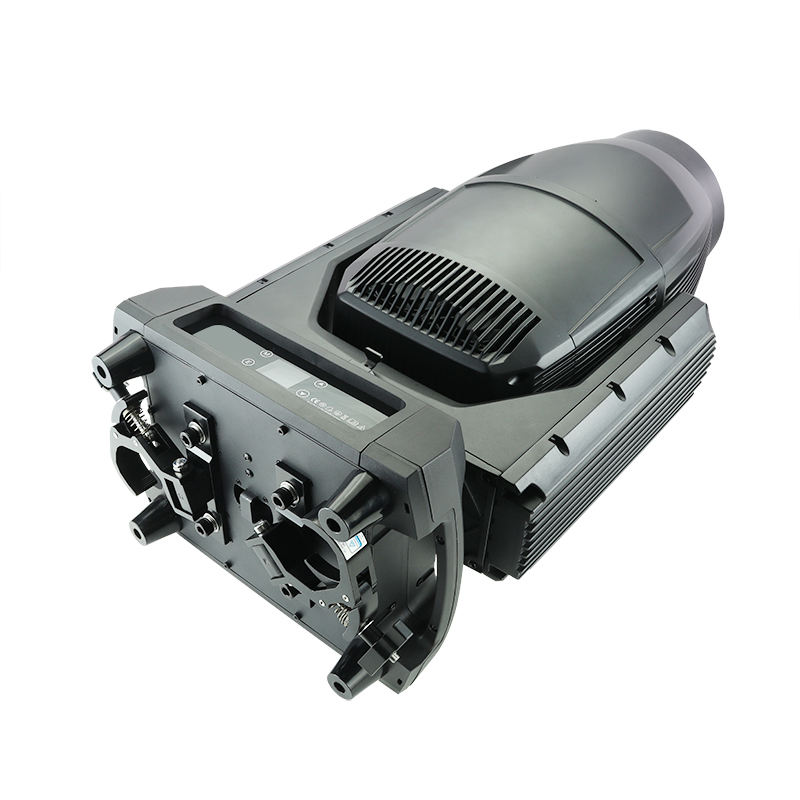

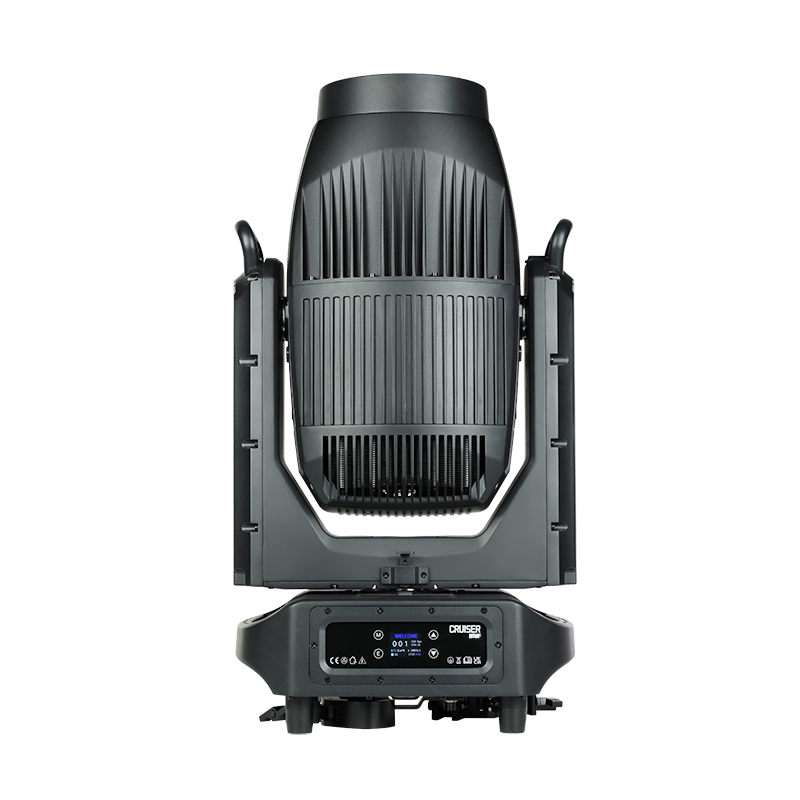

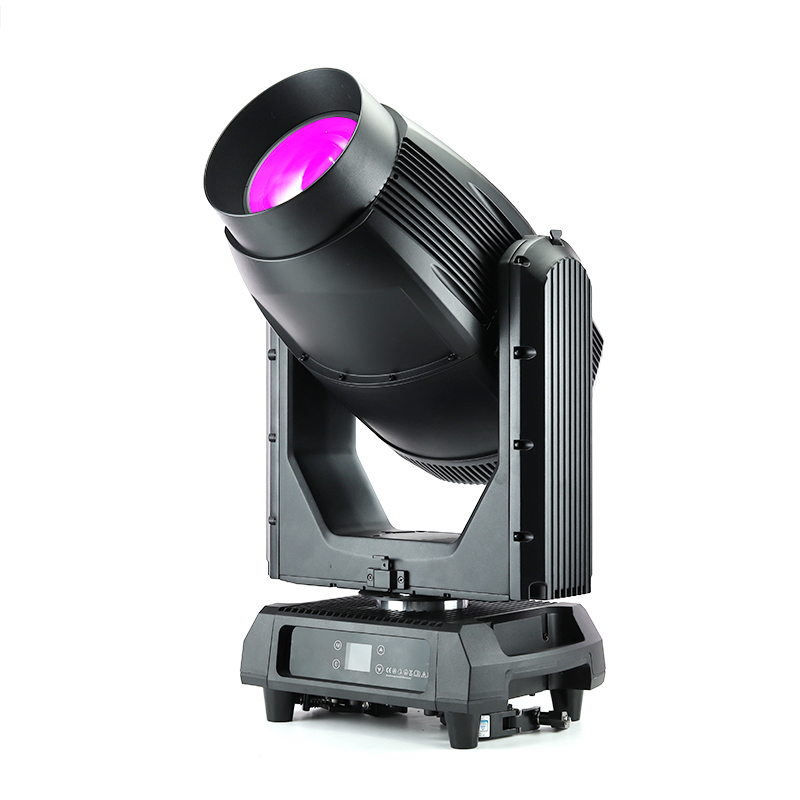

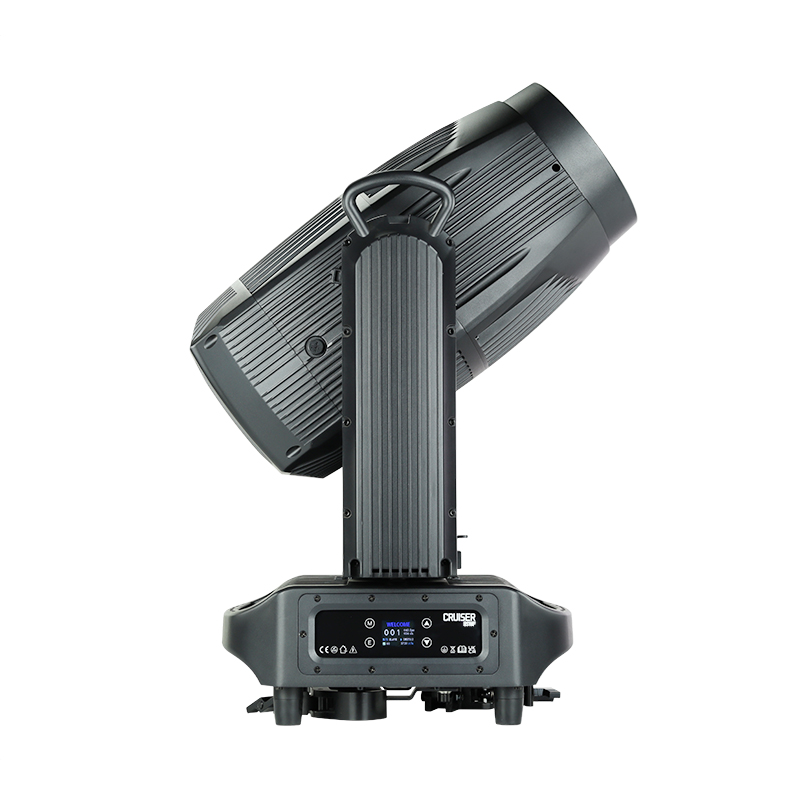

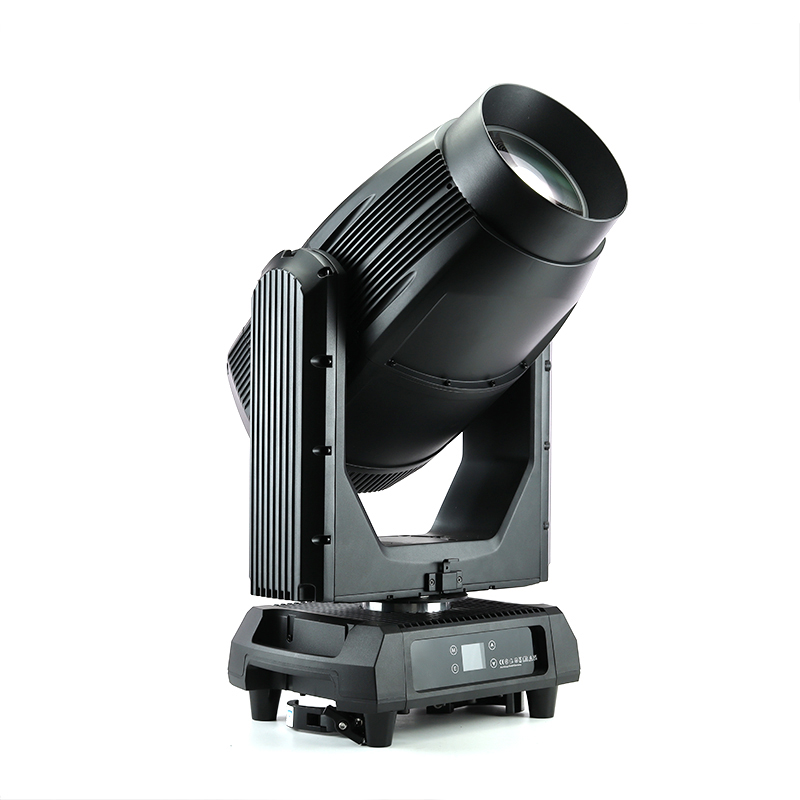

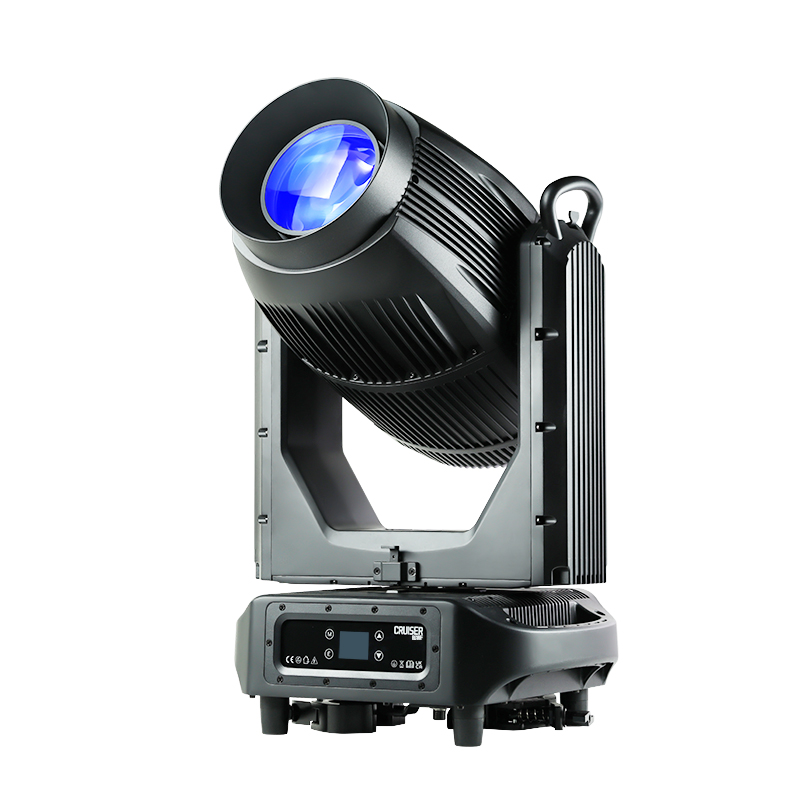

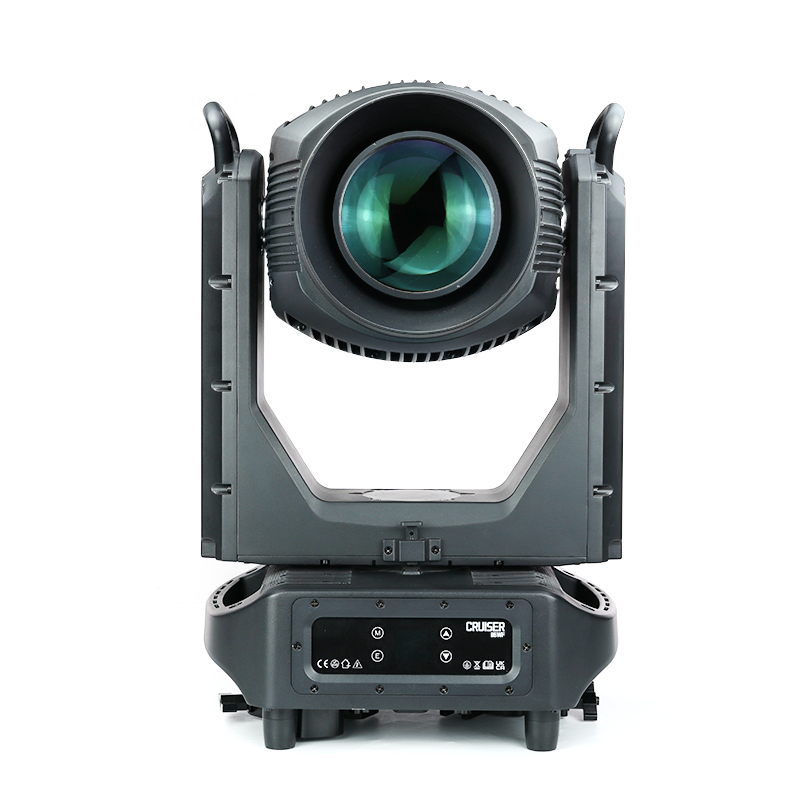

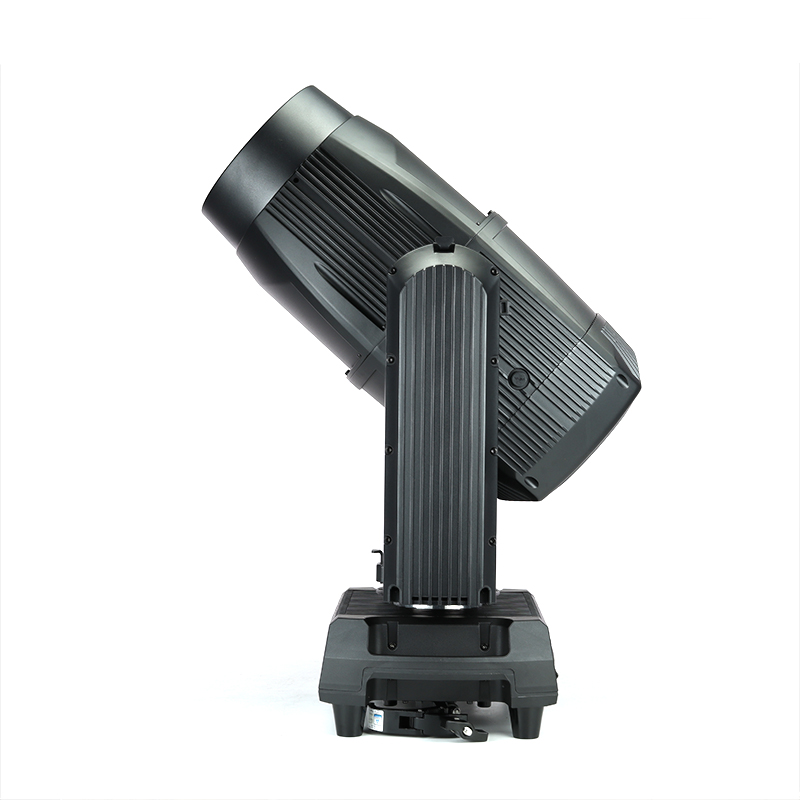

CRUISER PROFILE 900IP

Technical Specification▼

Source

Lamp: 700W LED

Optical system

Beam Angle: 5-55 degrees

Color temperature: 6500K

Main features

Color wheel1: 5 fixed dichroic colors+blank

Color wheel2: 5 fixed dichroic color +blank

CMY: Independent CMY 0-100% linear color change

CTO: Variable CTO, 3.000K - 6.700K

Static gobo wheel :9gobos+blank

Rotate gobo wheel : 7gobos+blank, indexable and replaceable

Effect wheel: Single aluminium animation wheel

Framing shutters: 4 individual positionable blades plus rotation

Iris: Motorized, stepless, pulse effects up to 3 Hz

Prism：6-face prism rotating at variable speed

Frost: 2 frost level: Light and medium

Control

Control Mode: DMX512, Master-slave,Auto,RDM

Pan Movement: 540°,16bit

Tilt Movement: 270° ,16bit

Display: LCD display with 5touch buttons

Cooling fan: Silence fan, speed changeable

Body: Magnesium alloy

Electrical specification and connections

Input Voltage:100-240V 50/60Hz

Power Consumption:800W

Led life: 50000Hrs

DMX data: 3pin in/out & 5pin in/out XLR

Power connector:Powercon TRUE1 in/out

Dimmer:0-100% linear dimmer

Approvals

CE Compliant

ROSH Compliant

Mechanical specification

Weight: 31kg

Product size: 396*310*788mm

Ingress protection rating: IP66

Included items

User Manual

Power Cable

Signal Cable

Folded Clamp

Optional accessories

Safety Wire
