Technical Specification▼

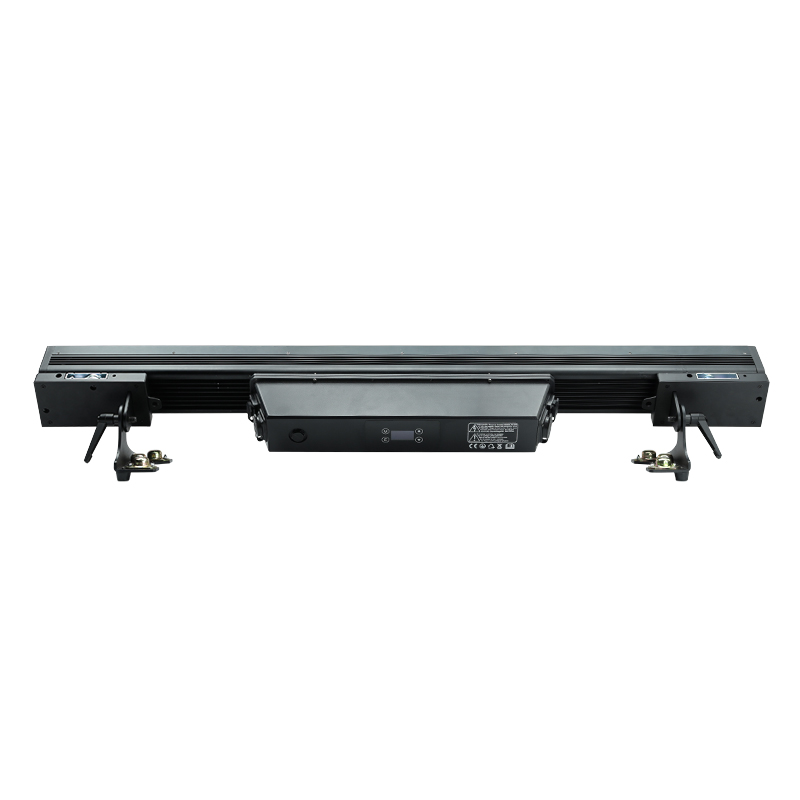

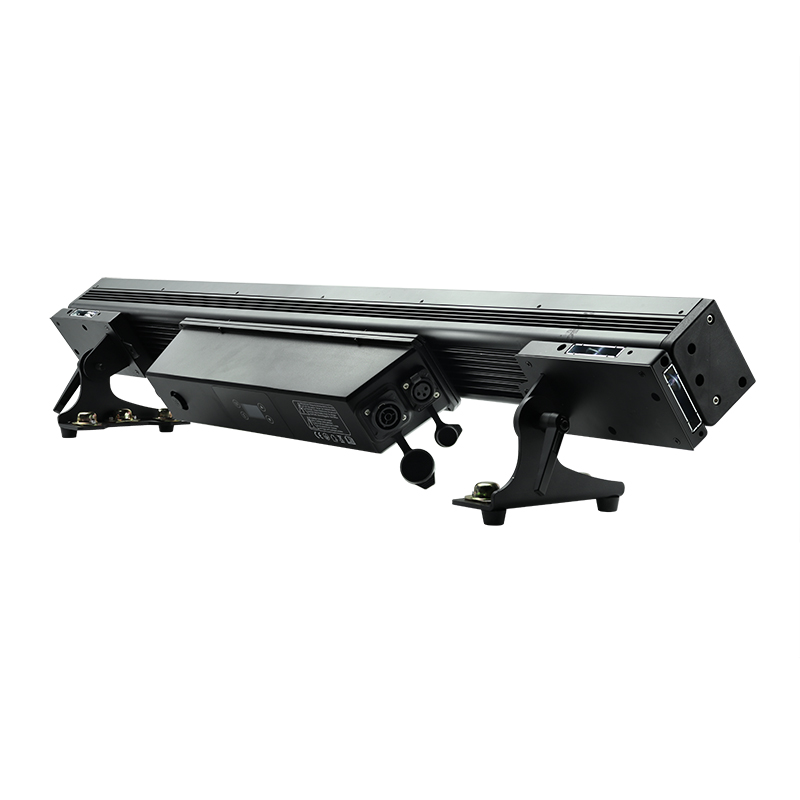

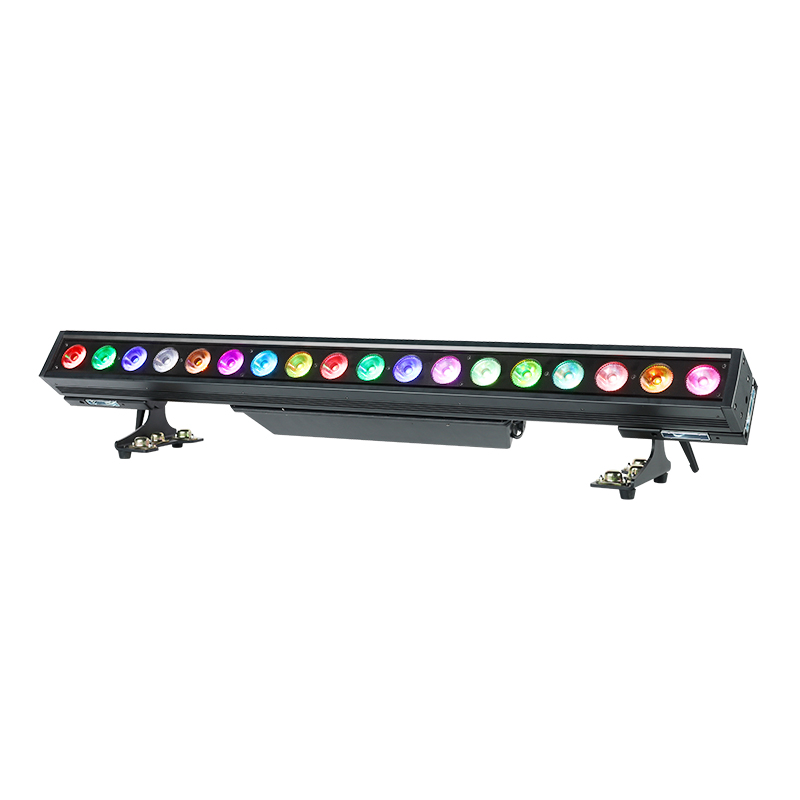

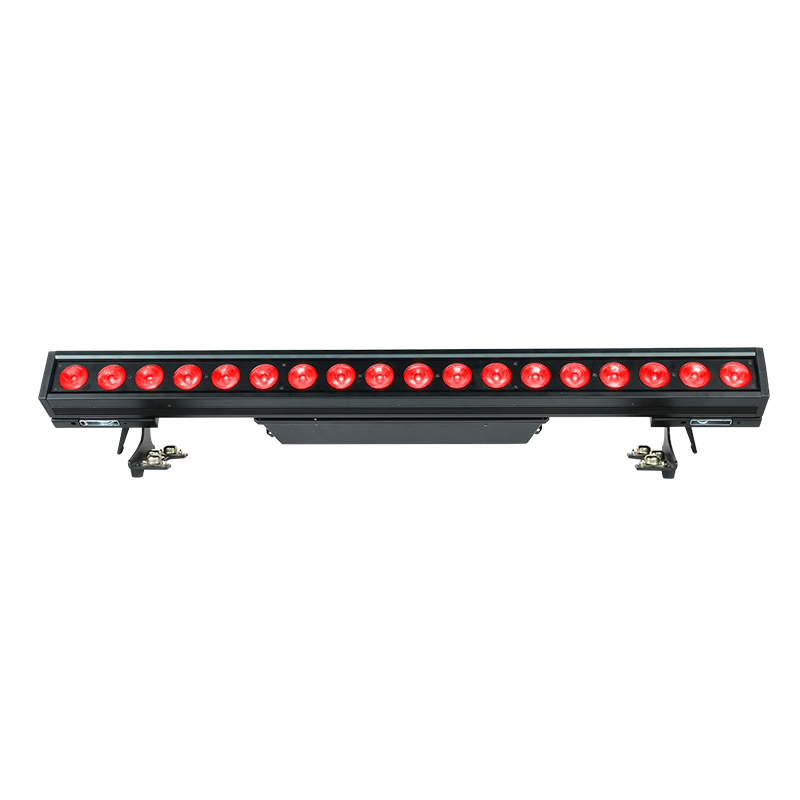

The Batten is a quad-color RGBW LED batten with 18 individually controllable LEDs.The IP65-rated unit features tremendous output and an extraordinary reach with a native 25° beam angle. Mount it your way by adjustable trunnions with ¼ turn adaptors for the Omega Bracket, innovative support base, or end-to-end mounting for seamless row alignment,batten-to-batten mounting,stack side by side.Built for touring, live event, television, and theatrical productions

Source

Light Source: 18pcs LED RGBW 4in1 mixing color

Power: 160W

Main features

Feature: each led controlled individual, point control

lens gle:25degrees

Dimmer: 0-100% dimmer

Strobe rate:0-10HZ

Working Environment: -20℃-40℃

Control

Control mode:DMX512,Master-slave,Sound,Auto

Channel: 1CH / 5CH / 8CH / 90CH / 93CH

Thermal specification

Maximum ambient temperature: 40 °C(104℉)

Maximum surface temperature: 90 °C(194℉)

Minimum operating temperature: -20 °C(68℉)

Approvals

CE Compliant

ROSH Compliant

Mechanical specification

Weight: 9.2kg

Packing size: 1000x140x180mm

Ingress protection rating: IP65

Included items

User Manual

Power Cable

Signal Cable

Omega bracket

Optional accessories

Lamp Hook

Safety Wire

Support base
