Product Video▼

Technical Specification▼

Source

Pixelated beam: 7*60W RGBW LEDs

Filaments Aura: 12*1.32W RGBW LEDs(132pcs led 0.12w,separeate 12 filaments,each flaments 11 leds)

Beam pixel mapping: individual RGB control of each the 7 beam pixel

Aura pixel mapping: individual RGB control of each the 12 filments

Optical system

Zoom Angle: 4-52 degrees

Color temperature: 1000K-12850K

Main features

Virtual Colors wheel : 48 color presets,continuous rotation,random color

16-bit Controllable Parameters: Beam & Aura Dimming, Beam Color Mixing, Zoom, Pan and Tilt

Body: Die-Aluminum+Nylon

Cooling: Waterproof silent axial flow fan, divergent high-efficiency integrated die-cast aluminum radiator

Optics: High-efficiency concentrating heat-resistant glass light guide column + integrated high-transparency acrylic lens

Control

Setting & Addressing:LCD display with 5 buttons

Control Mode:DMX512, Master-slave,Auto,RDM

Channel:20, 36, 57, 93, 20, 14 & 25

Electrical specification and connections

Input voltage range: 100-240 V, 50/60 Hz

Power consumption: 350W

Led life:20000Hrs

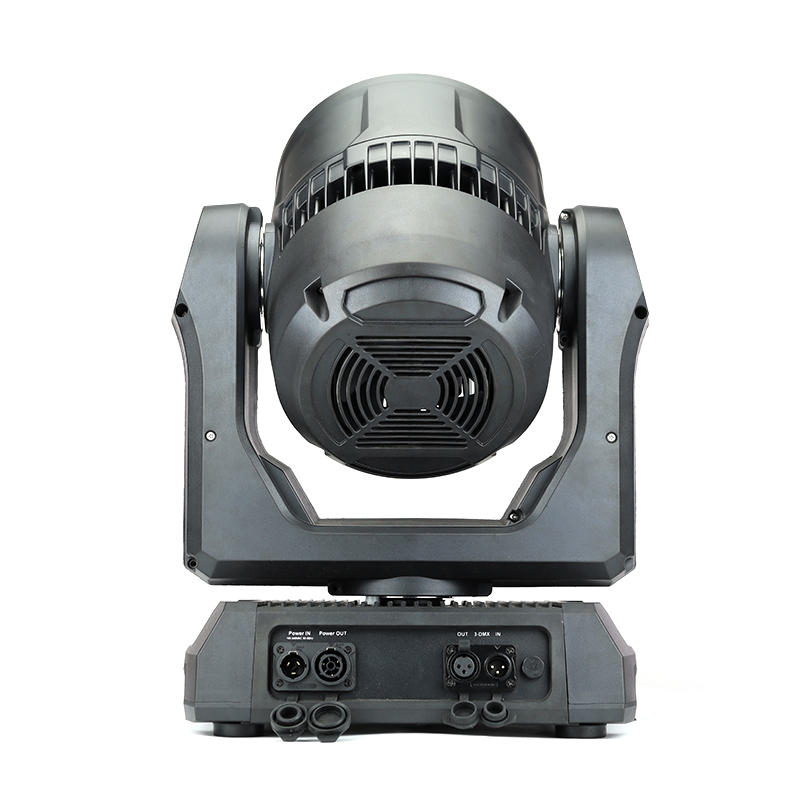

Power connector in/out: Ture one In/Out

DMX data in/out: 3pin DMX IN/OUT

Dimmer:0-100% linear dimmer

Zoom: Motorised 8 or 16 bit

Focus: Montorised 8 or 16 bit

Approvals

CE Compliant

ROSH Compliant

Mechanical specification

Weight: 15.3kg

Product size: 388*252*491mm

Ingress protection rating: IP65

Included items

User Manual

Power Cable

Signal Cable

Omega

Optional accessories

Lamp Hook

Safety Wire
