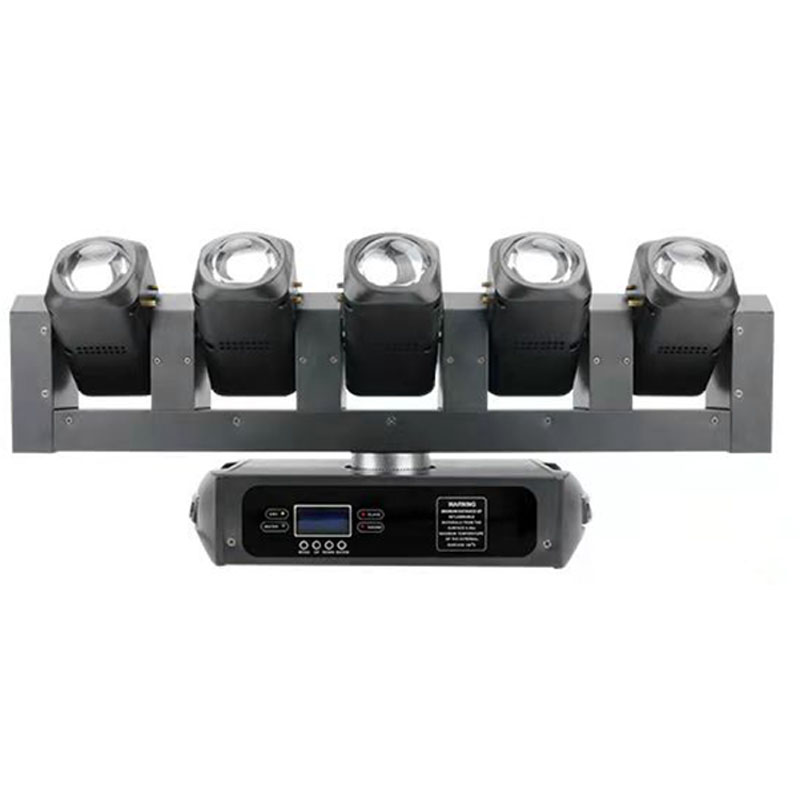

LED MOVING STAGE BAR 5x40W PIXEL

Pixel Control

Availability:
Quantity:
  • LH-C075A


Technical Specification

Source

Lamp: LED

Colour Temperature: 6000 K

Ballast: Electronic


Main features

Each 40W(5pcs) RGBW led +6pcs x 20w  white

Colour mixing: RGBW

Beam , Wash , Strobe Multiple Effect

White light: Variable CCT 2.700K - 6.000K

Electronic strobe effect with variable speed up to 20 Hz, pre-programmed random strobe & pulse effects

High resolution electronic dimming: 0 - 100%

(Low Light Linearity) Imperceptible 16 bit dimming for ultra smooth fade to black

Suitable for all types of production in DJ,Disco,Concert,Garden,Wine bar,Theatre and TV


Control

Setting & Addressing: two-row LCD display & 4 control buttons

Control mode: DMX 512, Auto, Master-slave, Sound

Channel: 13CH/17CH/28CH/43CH


Thermal specification

Maximum ambient temperature: 40 °C(104℉)

Maximum surface temperature: 90 °C(194℉)

Minimum operating temperature: -20 °C(68℉)


Electrical specification and connections

Power supply: Electronic auto-ranging

Input voltage range: 100-240 V, 50/60 Hz

Power consumption: 380 W

LED Source: 5x 40W RGBW 4in1 LED+6x20w white

Power connector in/out: powerCON/Out

DMX data in/out: Locking 3-pin XLR


Movement

Pan movement:540 degree

Tilt movement: 120 degree


Approvals

CE Compliant

ROSH Compliant


Mechanical specification

Height: 650mm

Width: 185mm

Depth: 300mm

Net Weight: 10.5kg

Packing size: 760*380*270mm

Ingress protection rating: IP20


Included items

User Manual

Power Cable

Signal Cable

Omega


Optional accessories

Lamp Hook

Safety Wire
