Home » Product category » Lamp Moving Head Lights » Mini Focus Spot Compact 10R 280w Moving Head
Share to:

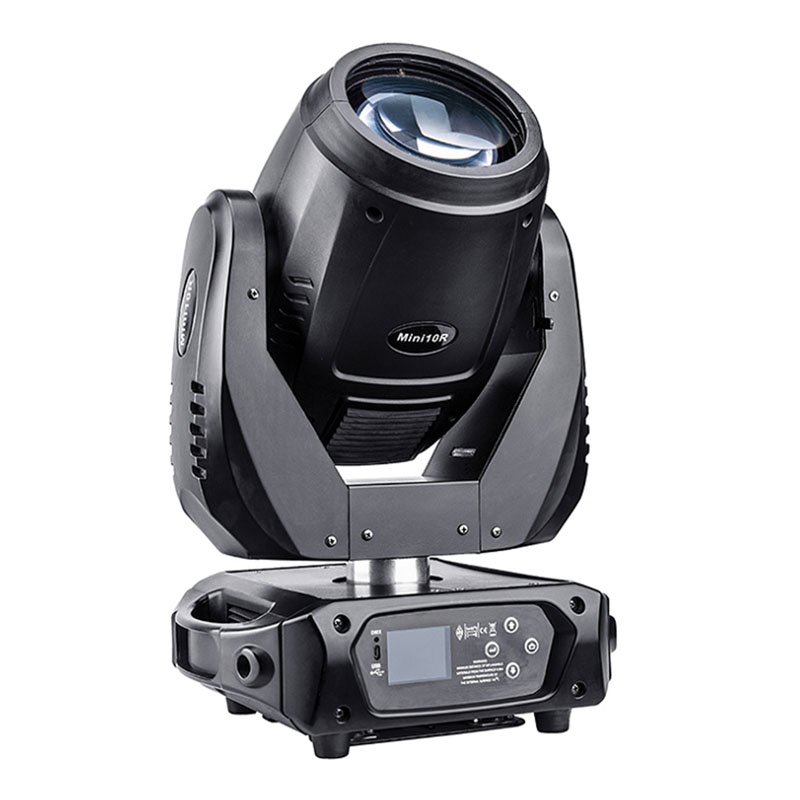

Mini Focus Spot Compact 10R 280w Moving Head

Gobo: 14 gobos+blank
Colors: 13 color+blank
Availability:
Quantity:
  • LH-A034

Product Video



Technical Specification

Source

Lamp

Colour Temperature: 6000 K

Ballast: Electronic


Optical system

Beam angle parallel beam angel :0-3.8°


Main features

Prism: prism 1: 16 prism rotation; prism 2: 8+16 Prism rotation, 2prism can overlap.

1 colorful wheel: six color

Gobo: 14 gobos+blank double rotation rainbow effect

Colors: 13 color+blank,single rotation rainbow effect

Focus: option focus

Dimmer:0-100% linear dimmer

Strobe:Independent strobe channel, 1-13times/s, speed adjustable

Lamp: LAMP DMX ON/OFF, ignited by inverter,protect and lengthen the lifetime of the bulb


Control

Setting & Addressing: two-row LED display & 4 control buttons

Control mode: DMX512/Master-slave/Sound/Stand-alone /Auto

Channel: 16/14CH


Thermal specification

Maximum ambient temperature: 40 °C(104℉)

Maximum surface temperature: 90 °C(194℉)

Minimum operating temperature: -20 °C(68℉)


Electrical specification and connections

Power supply: Electronic auto-ranging

Input voltage range: 100-240 V, 50/60 Hz

Power consumption: 300 W

Light source: 260w lamp

Power connector in/out: powerCON/Out

DMX data in/out: Locking 3-pin XLR


Movement

Pan/Tilt movement: 540/270 degrees


Approvals

CE Compliant

ROSH Compliant


Product size

N.W.: 13.68kg

Ingress protection rating: IP20


Included items

User Manual

Power Cable

Signal Cable

Omega


Optional accessories

Lamp Hook

Safety Wire
