LH-H025A

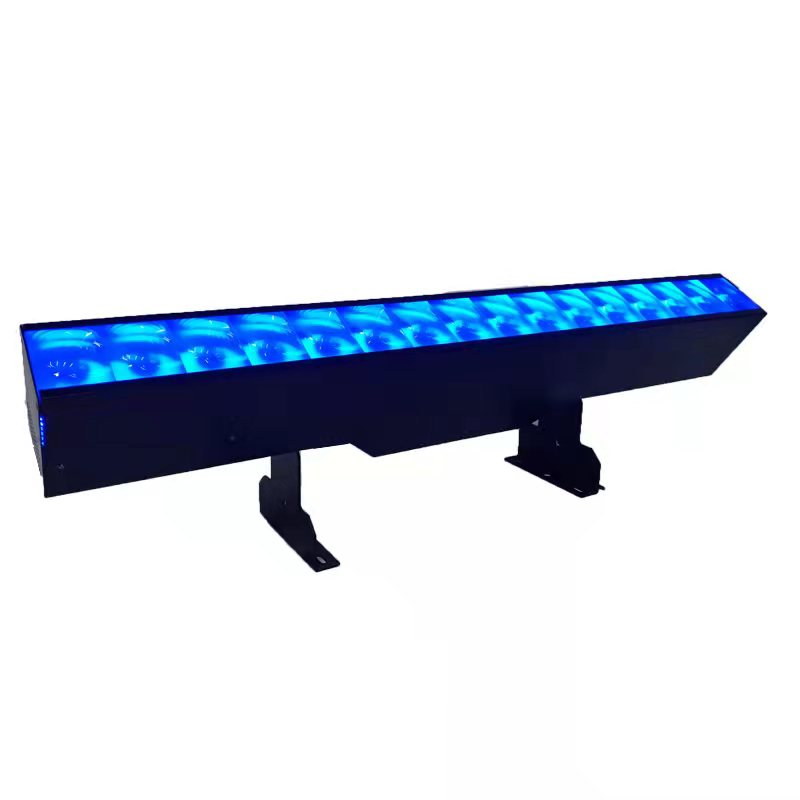

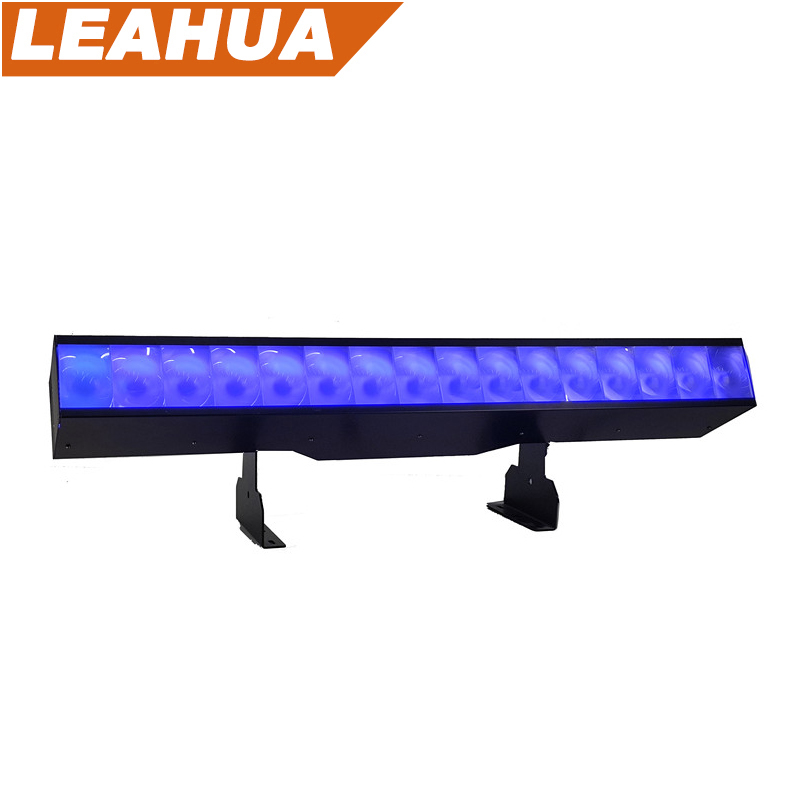

1440 bar is a multi-color wash and strobe linear bar fixture that provides a wide range of smooth color mixing across the full-color spectrum, a powerful strobe, and a pulse effect with variable speed up to 25Hz,Furthermore, the 1440 bar, a Multi-Color Wash & Strobe Linear Bar, features 16 LED segments, which can be controlled individually to allow the user freedom of directional segment pixel control and provide a wide variety of virtual colors, and air animation effects.
Optical System
Input power:AC100-240V 50HZ-60HZ
Power consumption :290 W
LED life expectancy: min. 60.000 hours
Specification
Light source: 1440pcs LED, RGB 3in1
Control mode:DMX 512, master-slave , sound , Auto
16 Pixel Control
Display:Colorful LCD display
IP Rate:IP20
Electrical /THERMAL
Power connector: PowerCON IN/ OUT
Signal connection: 3-pin XLR connectors IN/OUT
Control and Programming
DMX Protocol modes: 6
Control channels:3CH/48CH/50CH-11CH-56CH
Mechanical Specification
H: 210mm
W:150 mm
L: 110mm
N.W: 9kg
Package
Weight: 10KG( 1pcs in one carton)
Approvals Certificate
CE Compliant
ROSH Compliant
Included items
User Manual
Power Cable
DMX Cable
Optional accessories
Clamp
Safety wire
Omega
