218A018BIPE

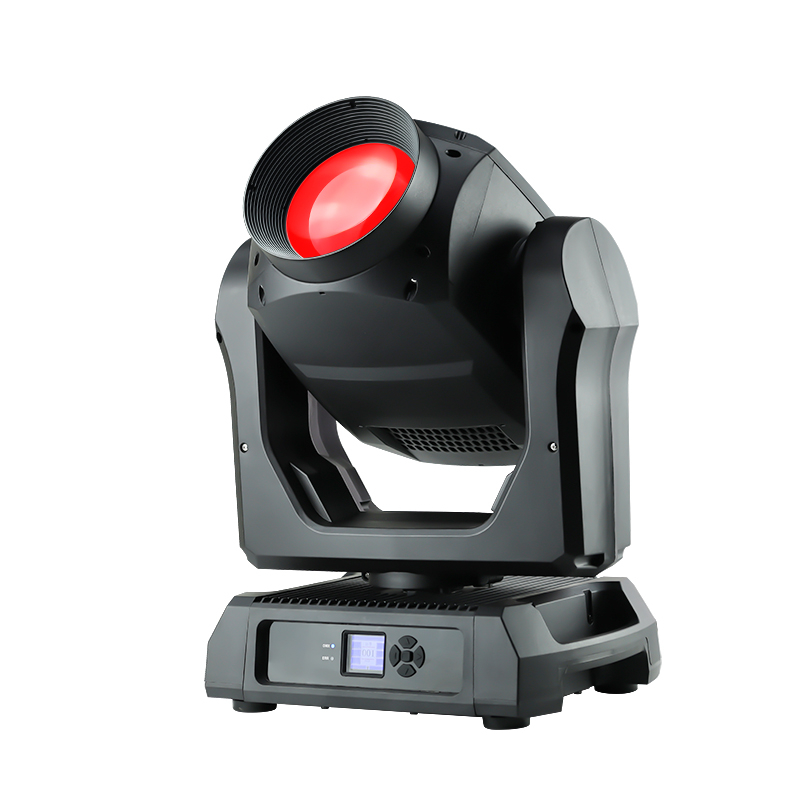

This 300W beam moving head delivers intense 8000K white light with a ultra-narrow 0-1.7° beam angle. Features 13 static gobos, 14 colors, and dual rotating prisms for rich effects. Offers 540° pan and 270° tilt with smooth dimming and strobe. IP65 waterproof rating and silent cooling fan ensure reliable outdoor/indoor performance. DMX512 control for professional integration!
Source
Lamp: 300W
Optical system
Zoom range: 0-1.7°
Main features
Colors wheel :14 colors+white,With half color, flow effect.
Colorful wheel: one colorful wheel
Frost: 1frost wheel
Static gobos wheel :13gobos+white, shaking and bidirectional rotation.
Prism1: 8-face prism; Prism2: 8+16+24 circle-face prism
Prism1 and Prism2 independently bi-rotate, can be overlap
Control
Control mode: DMX 512, Auto, Master-slave, RDM
Channel:20CH
Thermal specification
Working temperature: -10-40℃
Electrical specification and connections
Input voltage range: 100-240 V, 50/60 Hz
Power consumption: 400 W

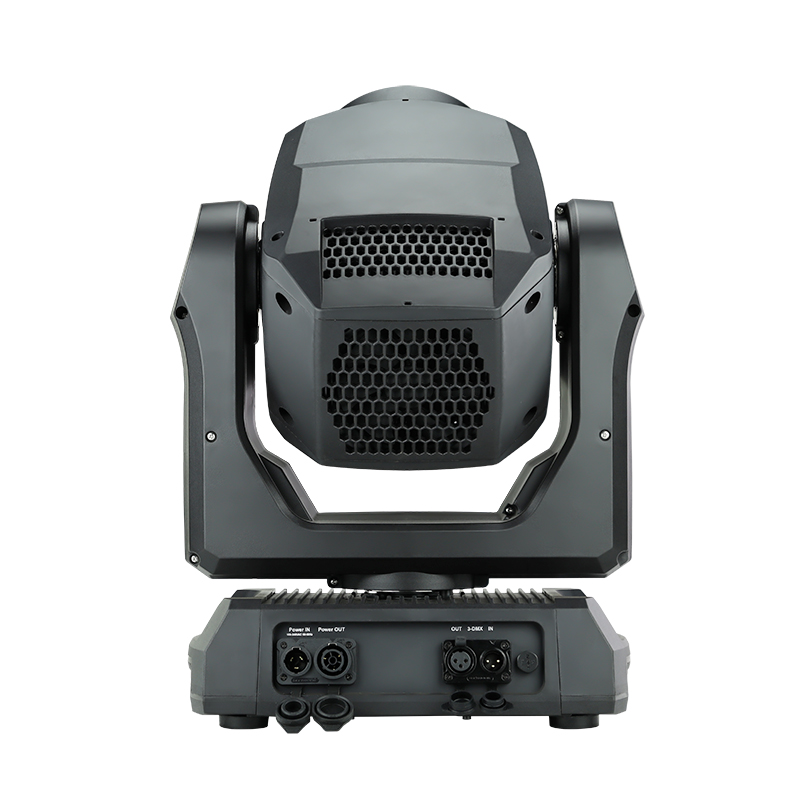

Signal Data: 3pin XLR in/out/5pin XLR in/out
Power connector:TRUE1 Powercon in/out
Movement
Pan movement:540 degree
Tilt movement: 270 degree
Approvals
CE Compliant
ROSH Compliant
Mechanical specification
N.W.: 18.95 kg
Product size:388*256*533mm
Ingress protection rating: IP65
Included items
User Manualx1
Power Cablex1
Signal Cablex1
Omegax2
Optional accessories
Lamp Hook
Safety Wire
