Technical Specification▼

Source

Power Consumption:400w

Light source: 300w whiteLED module

Led life:20000Hrs

CTC: 8000K

Optical system

Beam angle:0-1.7°

Main features

Colors wheel :14 colors+white

Colorful wheel: 1rainbow color wheel

Frost: 1frost wheel

Static gobos wheel :13gobos+white

Prism:Two prism wheel

Dimmer:0-100% linear dimmer

Strobe:0-20hz

Pan movement: 540^o 16bit

Tilt movement: 270^o 16bit

Display: LCD display with 5 buttons

Cooling fan: Low noise and efficient FAN cooling system

Body: Die-Aluminum+Plastic

Control

Control mode:DMX512, Master-slave,Sound,Auto,RDM

Channel:16ch

Thermal specification

Maximum ambient temperature: 40 °C(104℉)

Maximum surface temperature: 90 °C(194℉)

Minimum operating temperature: -10 °C(14℉)

Electrical specification and connections

Input: AC100v-240V 50/60HZ

Power Consumption:400w

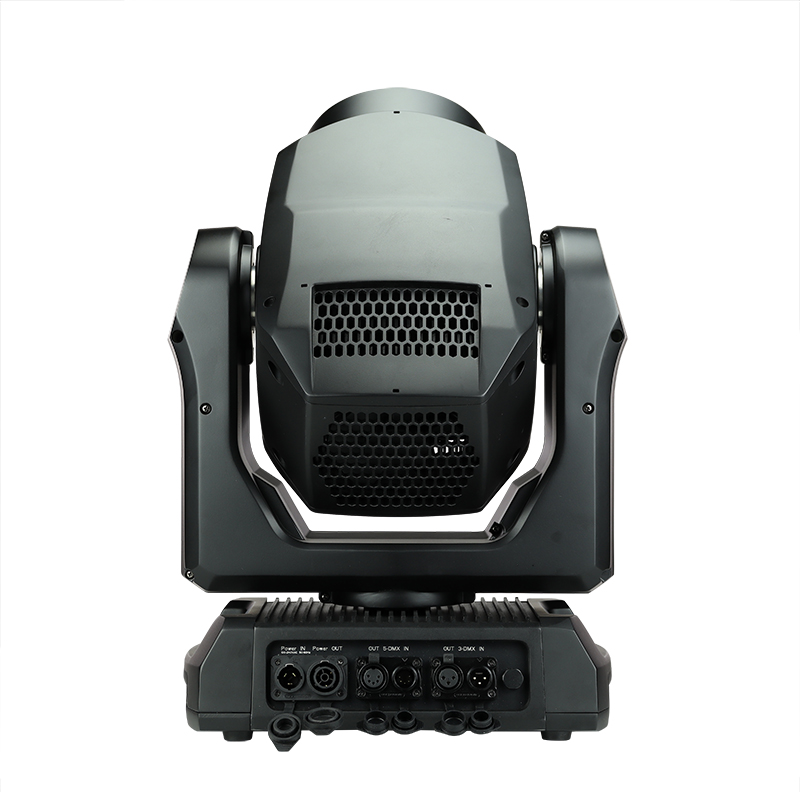

Signal Data: 3pin XLR in/out+5pin XLR in/out

Power connector:Looking Seetronic in/out

Approvals

CE Compliant

ROSH Compliant

Mechanical specification

Height: 533mm

Width:  388mm

Depth:  256mm

Weight: 16.5kg

Ingress protection rating: IP65

Included items

User Manual

Power Cable

Signal Cable

Optional accessories

Lamp Hook

Safety Wire

Omega
