Technical Specification▼

Source

Lamp: LED

Colour Temperature: 6000 K

Optical system

Beam angle: °

Main features

Colour mixing: RGBW

Wash , Strobe  Effects

Electronic strobe effect with variable speed up to 20 Hz, pre-programmed random strobe & pulse effects

High resolution electronic dimming: 0 - 100%

Control

Control mode: DMX 512, Auto, Master-slave, Sound,DMX Wireless

Channel: 9CH

Thermal specification

Maximum ambient temperature: 40 °C(104℉)

Maximum surface temperature: 90 °C(194℉)

Minimum operating temperature: -20 °C(68℉)

Electrical specification and connections

Power supply: Electronic auto-ranging

Input voltage range: 100-240 V, 50/60 Hz

Power consumption: 150 W

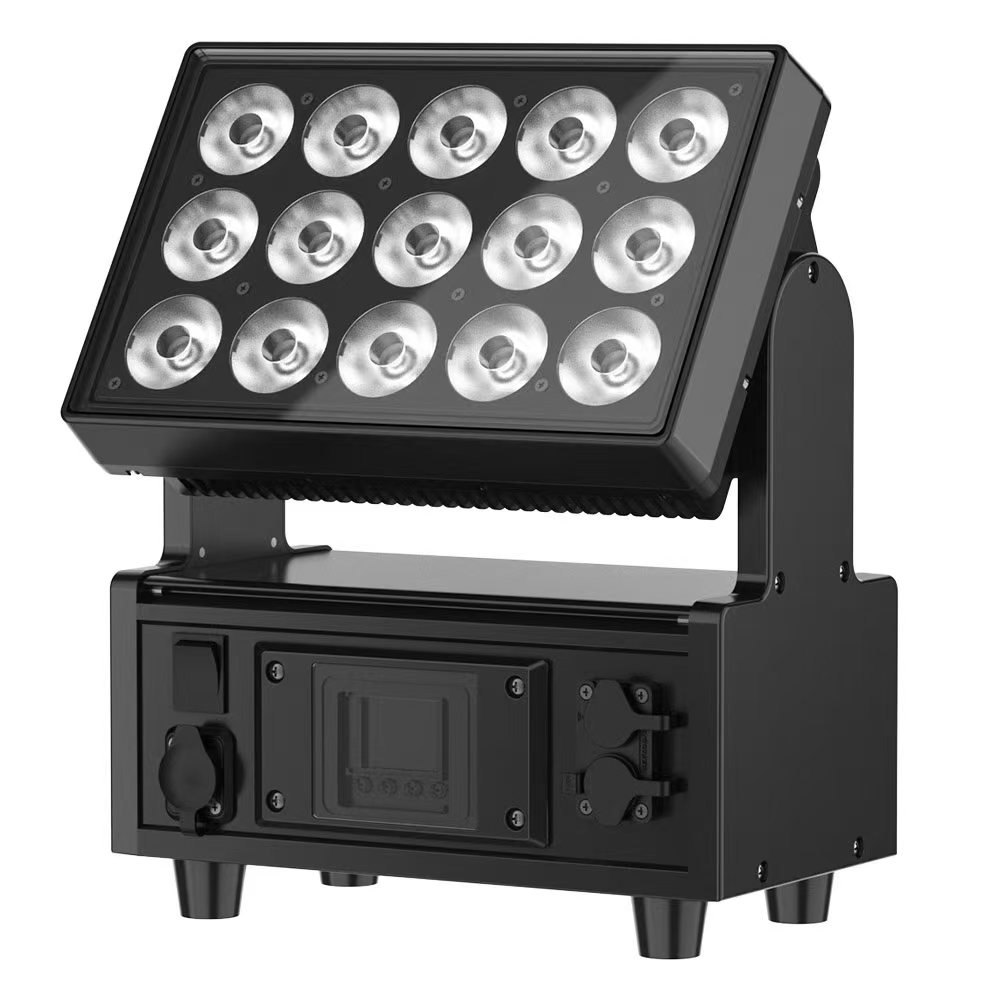

LED Source: Front: 15x 20W RGBW 4in1 LED

Power connector in/out: power CON/Out

DMX data in/out: Locking 3-pin XLR

Approvals

CE Compliant

ROSH Compliant

Mechanical specification

Height: 300mm

Width: 160mm

Depth: 370mm

Weight: kg

Ingress protection rating: IP65

Included items

User Manual

Power Cable

Signal Cable

Optional accessories

Lamp Hook

Safety Wire

Omega
