Technical Specification▼

Optical System

Input power:AC100-240V 50/60 Hz

Power consumption :50 W

Specification

128*0.25W LED RGB/RGBW,16 PIXEL zone control

Control mode:Auto,Sound,DMX,wireless ,Remote

Display: Touch display

IP Rate:IP65

Tube material: PC

Electrical /THERMAL

Power connector: DC Charging Port

DMX in/out:  3-pin XLR

-5°C-45 °C (23°F-104 °F)

Control and Programming

DMX Protocol modes: 3

Control channels: 7/20/52CH(RGB)

Control channels: 8/20/68CH(RGBW)

Mechanical Specification

Length: 1038MM

Diameter: 55MM

Weight: 2.2kg

Battery Parameter

Battery type: Lithium Ion

Battery charge time: 5hour

Battery Life:4/6/8 hours(all on) optional), more than 20hours(single color)

Battery capacity:12V 8000mAH

Package

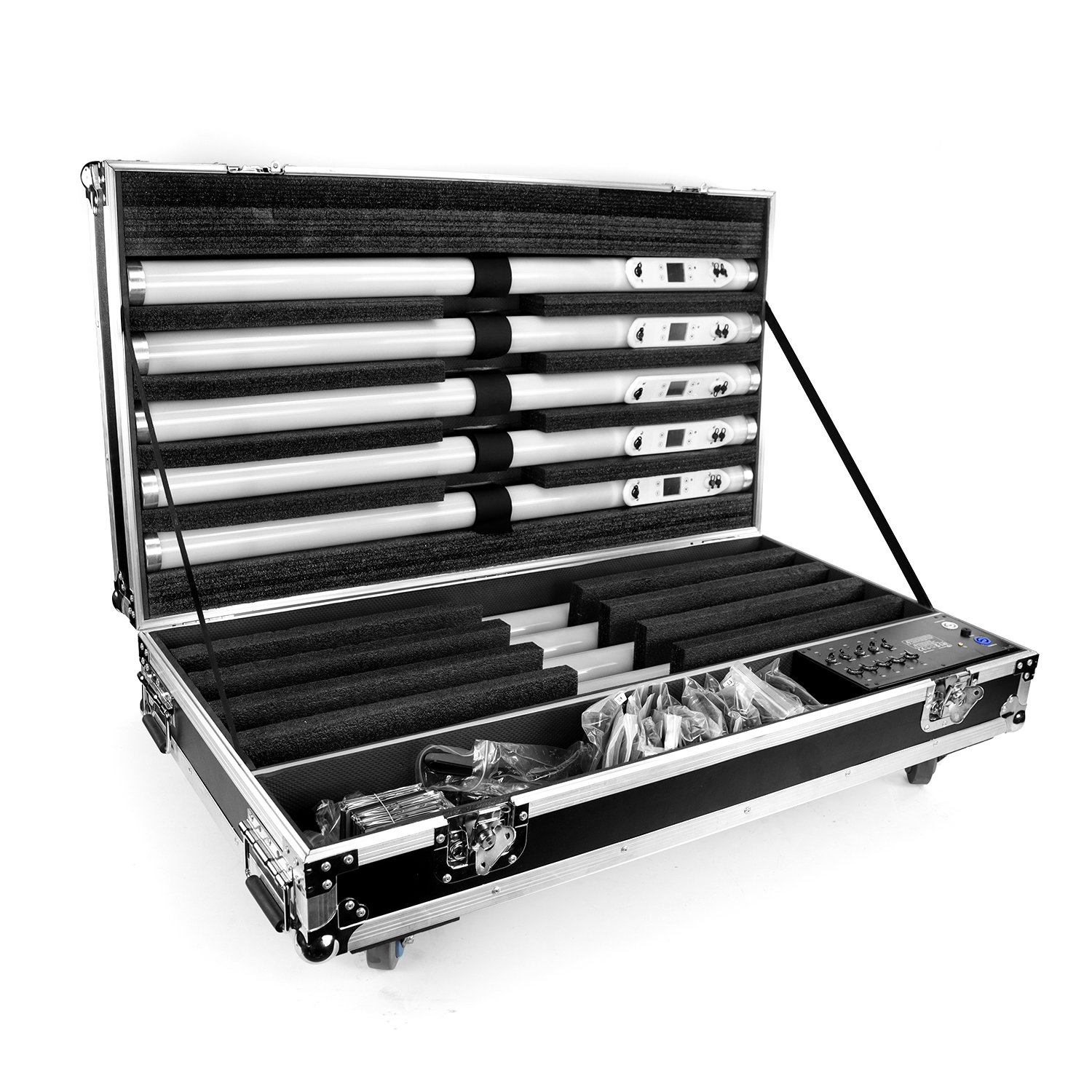

10in1 Flycase Size: 1100*600*390MM,, weight: 60KG

Carton size: 1070*160*140MM,weight: 4.5KG( 1pcs in one carton)

Approvals Certificate

CE Compliant

ROSH Compliant

Included items

User Manual

Power Cable

DMX Cable

Tripods

M8 ring

Optional accessories
