LH-D068
Source
Lamp: LED
Optical system
Zoom range:3-60degree
Main features
Colour mixing: RGBW
Zoom Motor:2pcs
Electronic strobe effect with variable speed up to 20 Hz, pre-programmed random strobe & pulse effects
High resolution electronic dimming: 0 - 100%
Suitable for all types of production in DJ,Disco,Concert,Garden,Wine bar,Theatre and TV
Control
Setting & Addressing: two-row LCD display & 4 control buttons
Control Mode: DMX512,Master-slave,Sound,Auto
Channel: 6/9CHs
Thermal specification
Maximum ambient temperature: 40 °C(104℉)
Maximum surface temperature: 90 °C(194℉)
Minimum operating temperature: -20 °C(68℉)
Electrical specification and connections
Power supply: Electronic auto-ranging
Input voltage range: 100-240 V, 50/60 Hz
Power consumption: 280 W
LED Source: 7pcs 30w 4-IN-1 LEDs (R, G, B, W)+ 96pcsx0.2w UV SMD

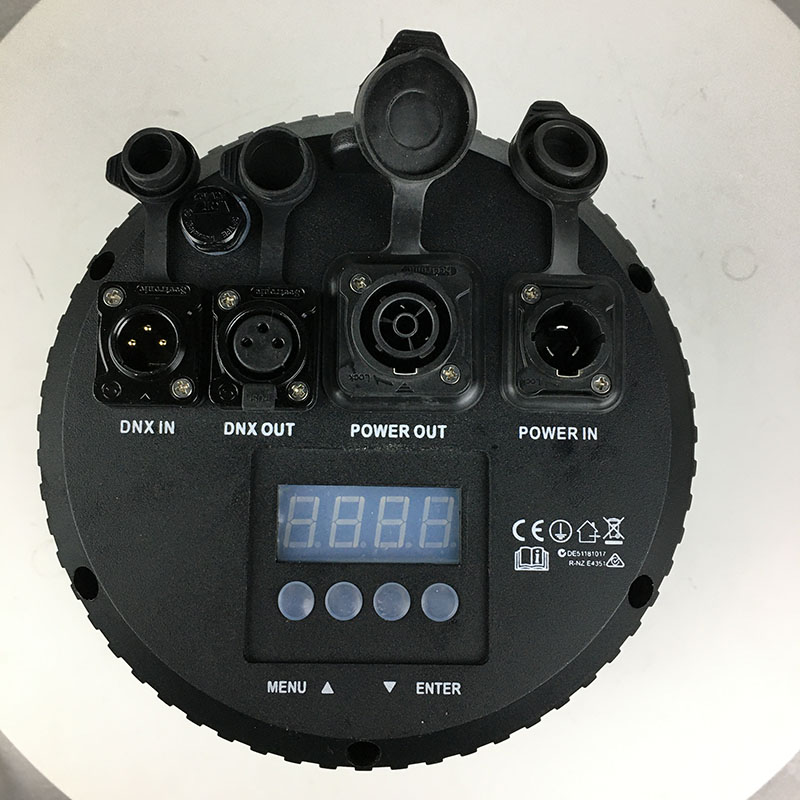

Power connector in/out: True one In/Out
DMX data in/out: Locking 3-pin XLR
Approvals
CE Compliant
ROSH Compliant
Mechanical specification
Weight: 8.98kg
Ingress protection rating: IP65
Included items
User Manual
Power Cable
Signal Cable
Omega
Optional accessories
Lamp Hook
Safety Wire
