Home » Product category » Strobes & Blinders » waterproof blinder 4pcs*100w led cob
Share to:

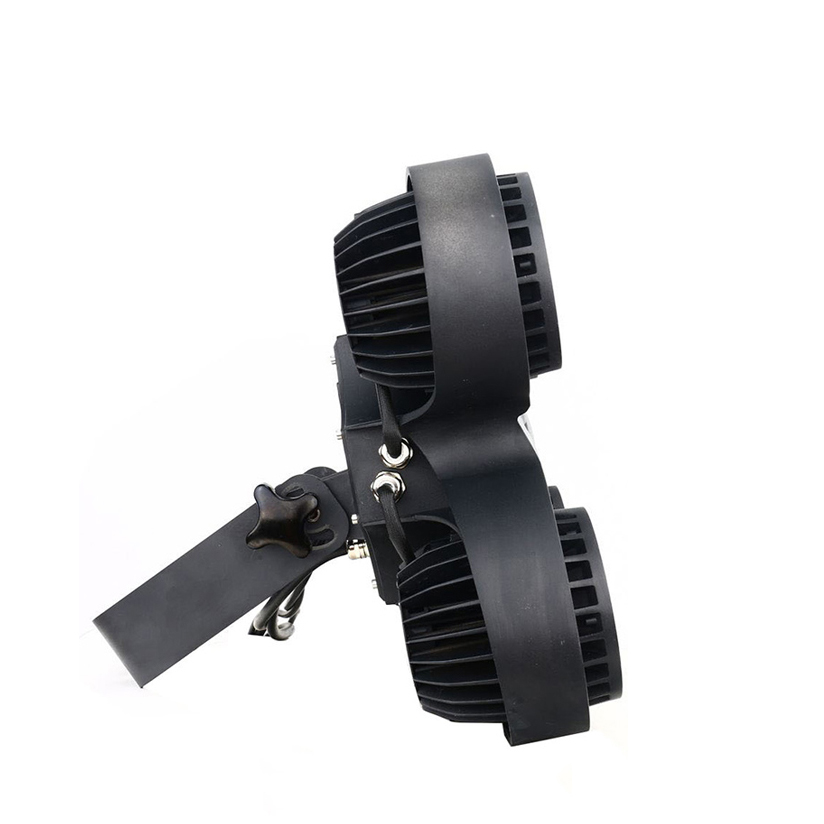

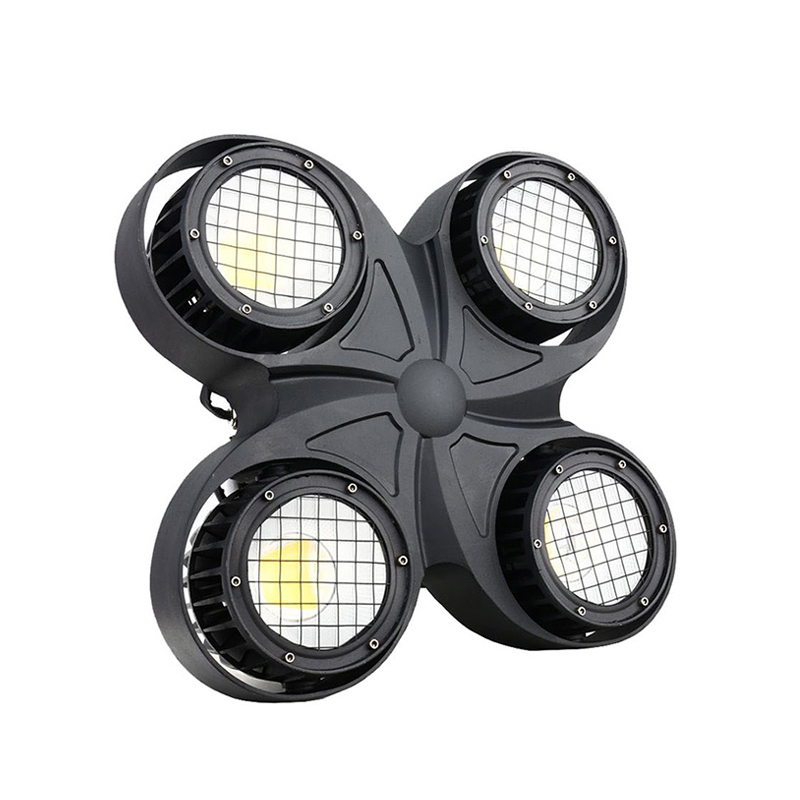

waterproof blinder 4pcs*100w led cob

Input Voltage: AC100-240V 50-60Hz
Power: 415W
LED: 4pcs100w warm white COB LED
Beam angle: 50degrees
Field angle: 80degrees
Strobe: 1-30Hz
Dimming
DMXchannel: 4/8ch
IP Rating: IP65
Cooling: Waterproof fan+ die- casting aluminum
Net weight: 6KG
Availability:
Quantity:
  • LH-K030

Product Video

Technical Specification



Source

Lamp: LED COB

Ballast: Electronic


Main features

Wash,Pixel control

High resolution electronic dimming: 0 - 100%

Suitable for all types of production in DJ,Disco,Concert,Garden,Wine bar,Theatre and TV


Control

Setting & Addressing: two-row LCD display & 4 control buttons

Control Mode: DMX512, auto, sound control,master-slave

Channel: 4/8CH


Thermal specification

Maximum ambient temperature: 40 °C(104℉)

Maximum surface temperature: 90 °C(194℉)

Minimum operating temperature: -20 °C(68℉)


Electrical specification and connections

Power supply: Electronic auto-ranging

Input voltage range: 100-240 V, 50/60 Hz

Power consumption: 415W

LED source: 4*100W

Power connector in/out: powerCON/Out

DMX data in/out: Locking 3-pin XLR



Approvals

CE Compliant

ROSH Compliant


Mechanical specification

Net weight: 6KG

Ingress protection rating: IP56


Included items

User Manual

Power Cable

Signal Cable


Optional accessories

Lamp Hook

Safety Wire
