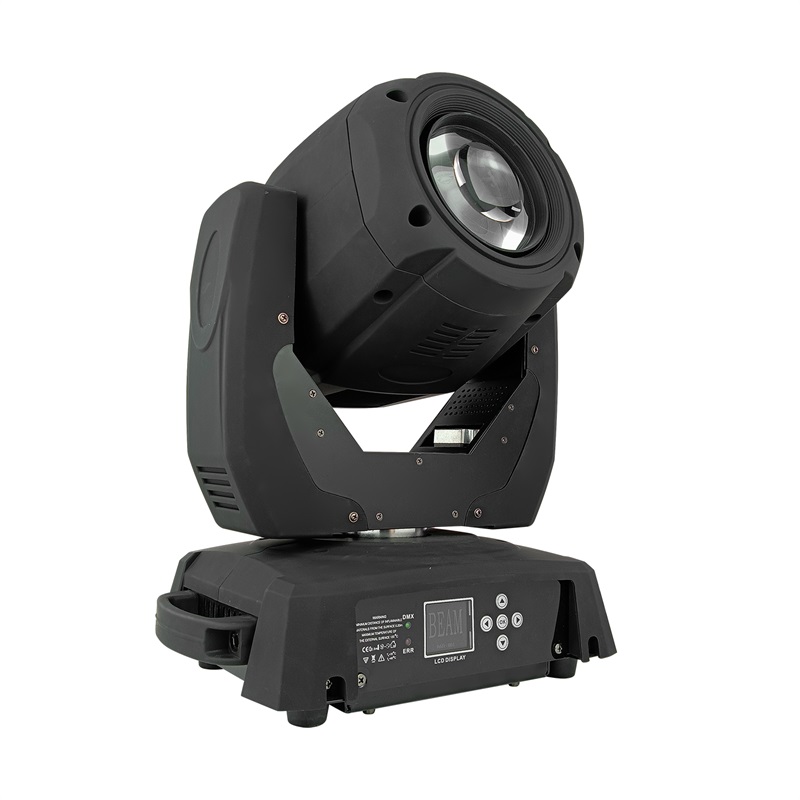

Moving head lights are essential in modern stage lighting, offering dynamic and versatile illumination for concerts, theaters, nightclubs, and various events. This article delves into the internal structure and working principles of moving head lights to help you understand their functionality better.
LED vs. Traditional Halogen Bulbs:Moving head lights typically use LED light sources due to their longer lifespan and higher energy efficiency compared to traditional halogen bulbs.
Lifespan and Efficiency: LEDs offer significant advantages in terms of durability and power consumption, making them ideal for continuous use in demanding environments.
Horizontal (Pan) Movement Control: The pan movement allows the light to move horizontally across a wide range of angles. This is controlled by precise motors that ensure smooth transitions.
Vertical (Tilt) Movement Control: Similarly, the tilt movement enables vertical adjustments. Together with pan control, it provides comprehensive coverage of the stage or venue.
Lens and Mirror Configuration: The optical system includes lenses and mirrors that focus and direct the light beam accurately.
Focusing Mechanism: Advanced focusing mechanisms allow for sharp or soft edges on the light beam, depending on the desired effect.
Metal Mask Adjustment: The dimming shutter consists of a motor-driven metal mask that gradually reduces light output without altering color or pattern settings.
Color Changes: The color wheel contains multiple filters that can be rotated into place to change the color of the light beam instantly.
Pattern Projection (Gobos): Gobos are stencils placed in front of the light source to project patterns or shapes onto surfaces.
Fan or Liquid Cooling Technology: Effective cooling systems are crucial for maintaining optimal performance and preventing overheating during prolonged use.
DMX512 Protocol Overview: Most moving head lights operate using the DMX512 protocol, which allows for complex control over multiple lighting fixtures from a single console.
Control Signal Transmission: Signals sent from the lighting console are received by each fixture's onboard processor, which interprets commands for movement, color changes, dimming, etc.
Precision Motor Drives: High-precision motors drive both pan and tilt movements, ensuring accurate positioning based on received signals.
Feedback Systems: Encoders provide real-time feedback to correct any deviations from intended positions, ensuring consistent performance.
The focusing mechanism adjusts the lens to achieve the desired beam sharpness.
The gobo and color wheels work together to create diverse lighting effects, with precise alignment ensuring seamless transitions.
Understanding the internal structure and working principles of moving head lights reveals their complexity and versatility. From efficient LED sources to precise motor control and sophisticated cooling systems, these lights are essential for dynamic and engaging lighting effects in various applications.
